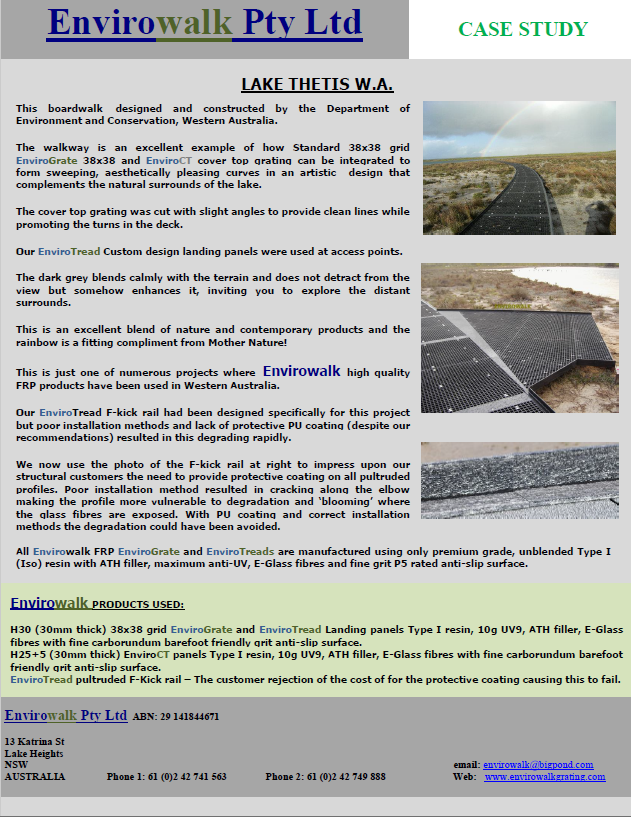

CASE STUDY - LAKE THETIS W.A. (PDF)

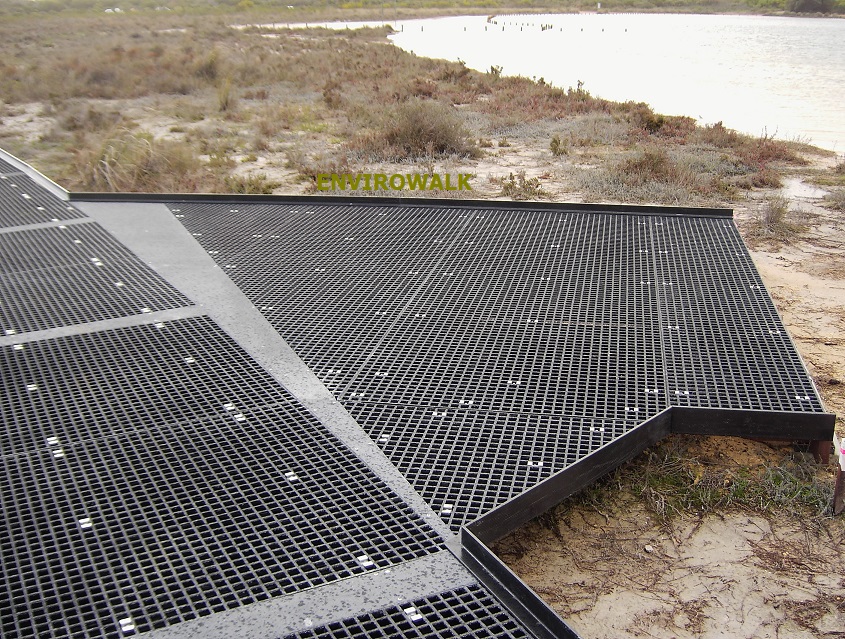

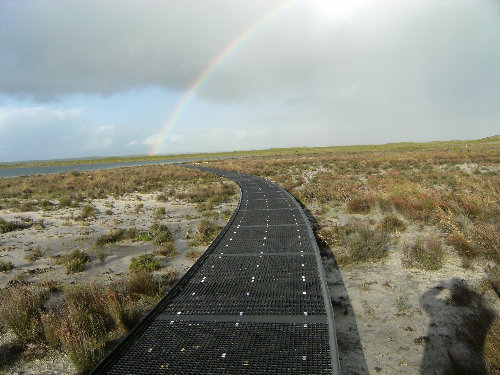

Lake Thetis boardwalk, W.A

Designed and constructed by the Department of Environment and Conservation, Western Australia this walkway is an excellent example of how Standard 38x38 grid EnviroGrate 38x38 and EnviroCT cover top grating can be integrated to form sweeping, aesthetically pleasing curves in an artistic   design that complements the natural surrounds of the lake. The cover top grating was cut with slight angles to provide clean lines while promoting the turns in the deck. Our EnviroTread Custom design landing panels were used at access points. The dark grey blends calmly with the terrain and does not detract from the view but somehow enhances it, inviting you to explore the distant surrounds. This is an excellent blend of nature and contemporary products and the rainbow is a fitting compliment from Mother Nature!

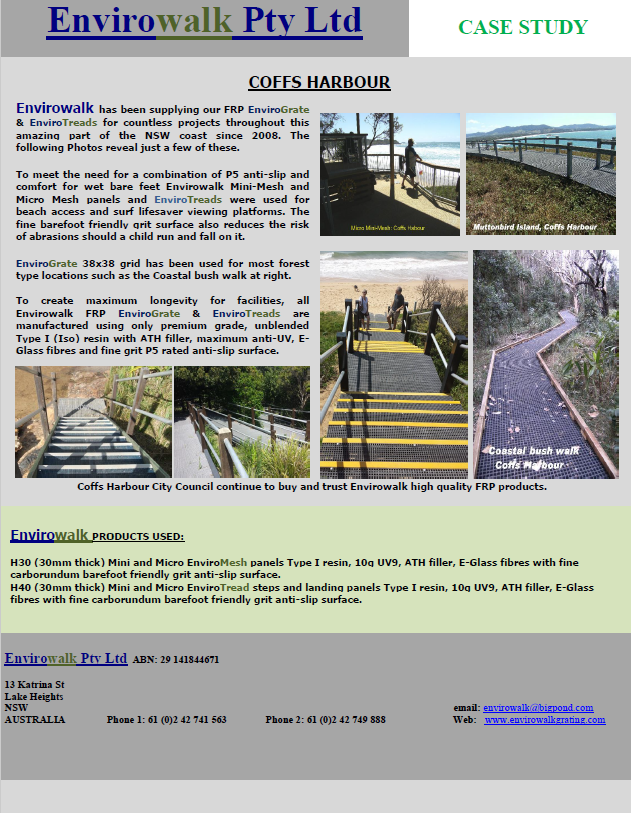

CASE STUDY - COFFS HARBOUR (PDF)

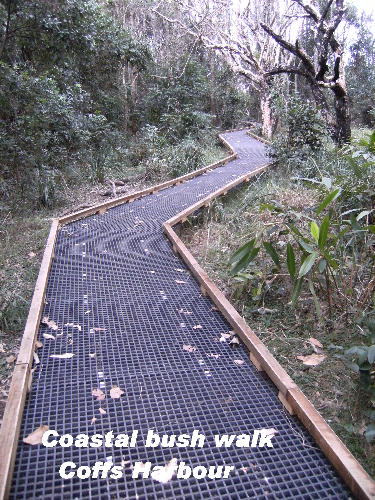

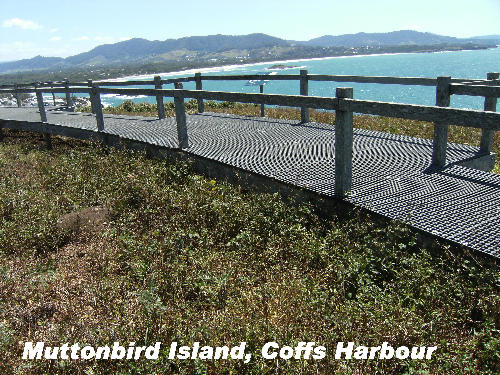

COFFS HARBOUR

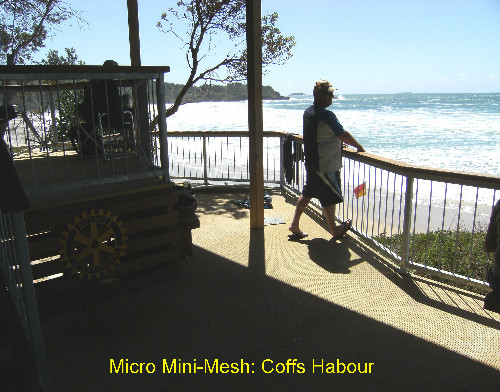

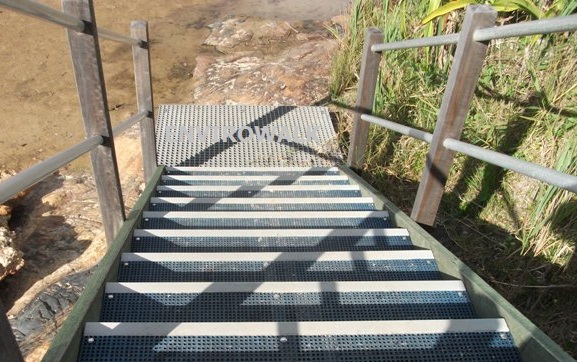

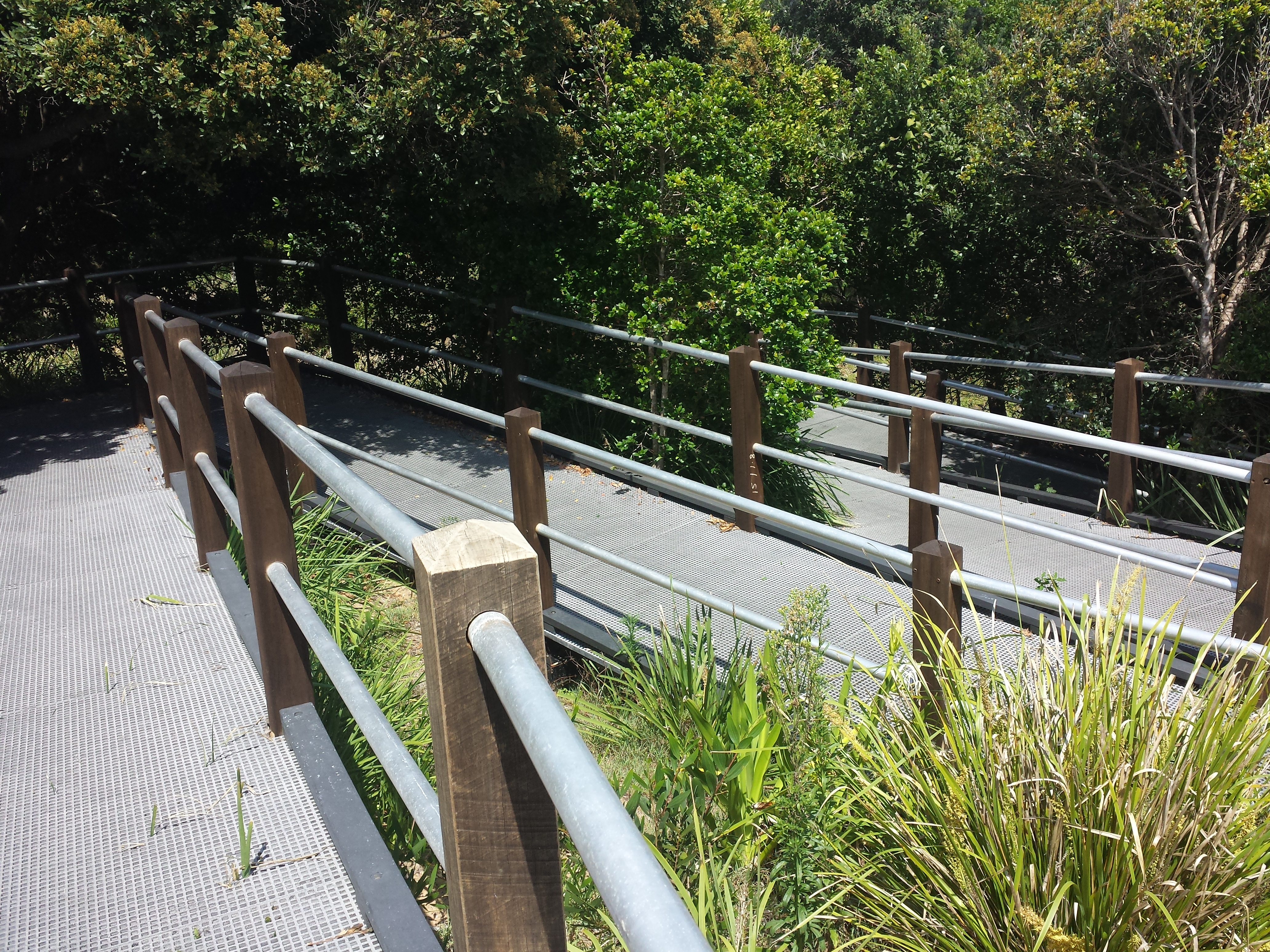

Envirowalk has been supplying our FRP EnviroGrate & EnviroTreads for numerous projects throughout this amazing part of the NSW coast ever since 2008. The following Photos display just a few of these. Mini-Mesh and Micro Mesh for beach access and surf lifesaver viewing platforms with EnviroGrate 38x38 grid used for most forest type locations. Our Mini-Mesh and Micro Mesh EnviroTreads have been used to create stair access to beaches and viewing platforms. Coffs Harbour City Council continue to buy and trust Envirowalk high quality FRP products.





nT



ro

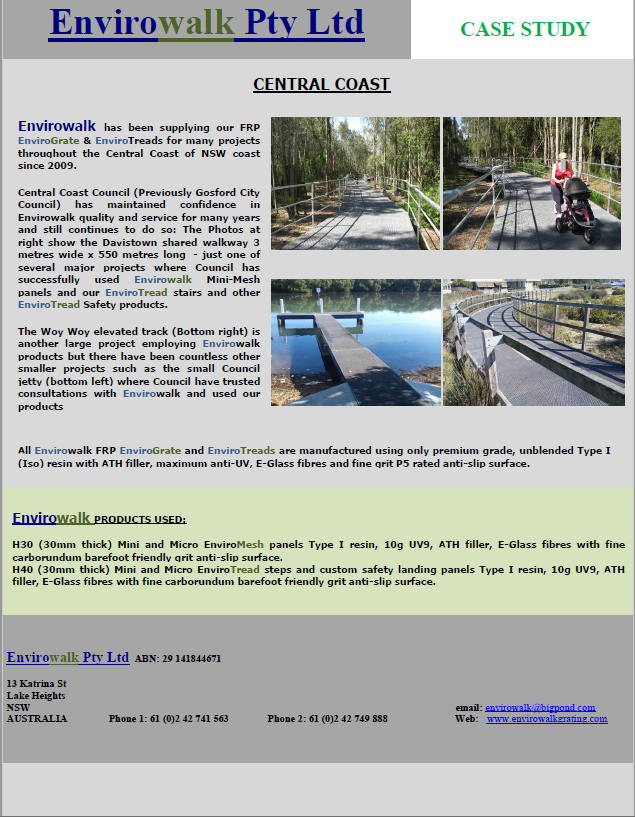

CASE STUDY - CENTRAL COAST (PDF)

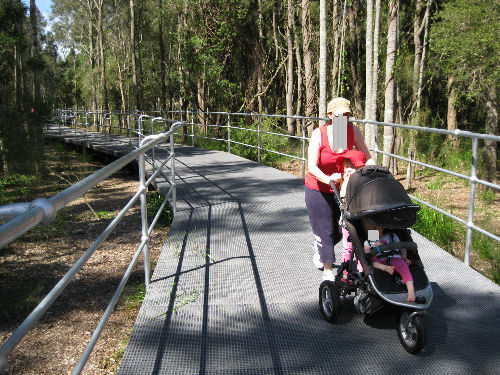

CASE STUDY: CENTRAL COAST NSW

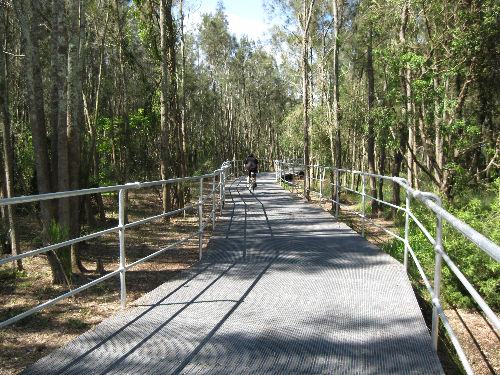

Envirowalk has been supplying our FRP EnviroGrate EnviroTreads for numerous projects throughout the Central Coast of NSW coast ever since 2009. The Photos at right show the Davistown shared walkway 3 metres wide x 550 metres long  - just one of several major projects where Central Coast Council (Previously Gosford City Council) successfully used Envirowalk Mini-Mesh panels and our EnviroTread stairs and other EnviroTread Safety products.

EnviroTread  EnviroTread EnviroTread  EnviroTread



ENVIROTREAD

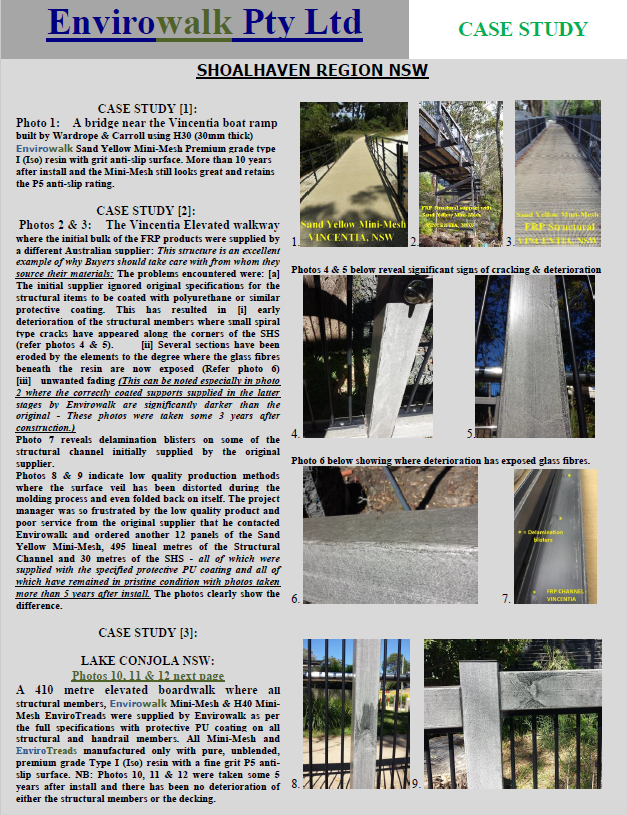

CASE STUDIES - SHOALHAVEN REGION (PDF)

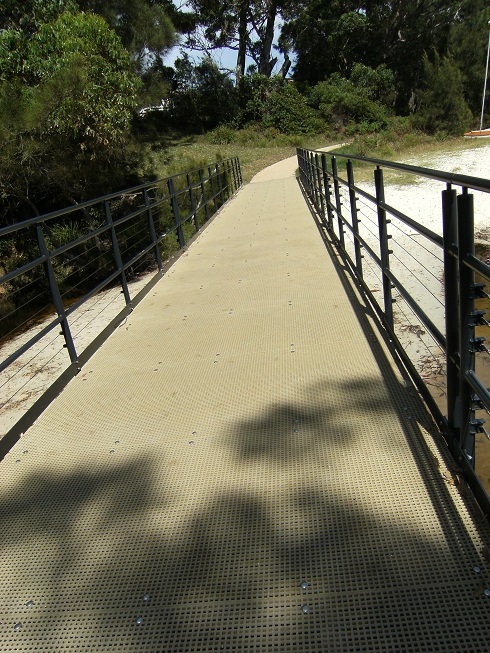

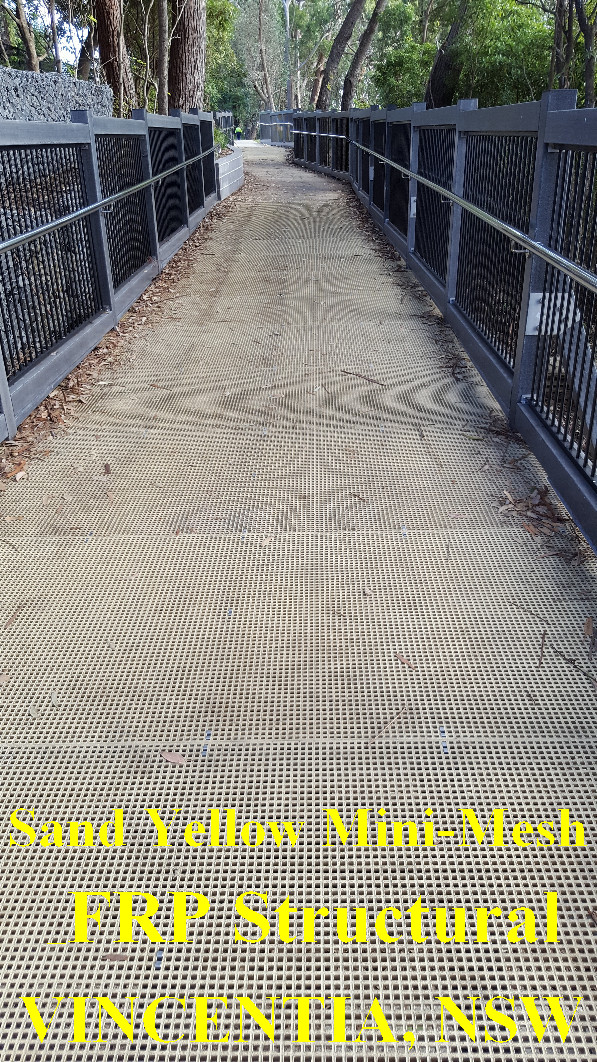

CASE STUDY [1]: Photo 1: A bridge near the Vincentia boat ramp built by Wardrope & Carroll using H30 (30mm thick) Envirowalk Sand Yellow Mini-Mesh Premium grade type I (Iso) resin with grit anti-slip surface. More than 10 years after install and the Mini-Mesh still looks great and retains the P5 anti-slip rating.

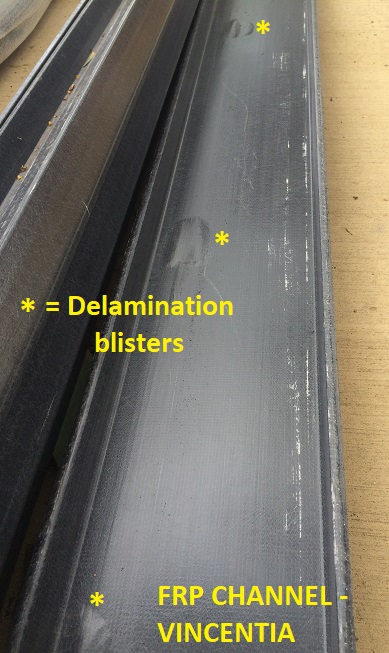

CASE STUDY [2]: Photos 2 & 3: The Vincentia Elevated walkway where the initial bulk of the FRP products were supplied by a different Australian supplier: This structure is an excellent example of why Buyers should take care with from whom they source their materials: The problems encountered were: [a] The initial supplier ignored original specifications for the structural items to be coated with polyurethane or similar protective coating. This has resulted in [i] early deterioration of the structural members where small spiral type cracks have appeared along the corners of the SHS (refer photos 4 & 5). [ii] Several sections have been eroded by the elements to the degree where the glass fibres beneath the resin are now exposed (Refer photo 6) [iii] unwanted fading (This can be noted especially in photo 2 where the correctly coated supports supplied in the latter stages by Envirowalk are significantly darker than the original - These photos were taken some 3 years after construction.)  Photo 7 reveals delamination blisters on some of the structural channel initially supplied by the original supplier. Photos 8 & 9 indicate low quality production methods where the surface veil has been distorted during the molding process and even folded back on itself. The project manager was so frustrated by the low quality product and poor service from the original supplier that he contacted Envirowalk and ordered another 12 panels of the Sand Yellow Mini-Mesh, 495 lineal metres of the Structural Channel and 30 metres of the SHS - all of which were supplied with the specified protective PU coating and all of which have remained in pristine condition with photos taken more than 5 years after install. The photos clearly show the difference.

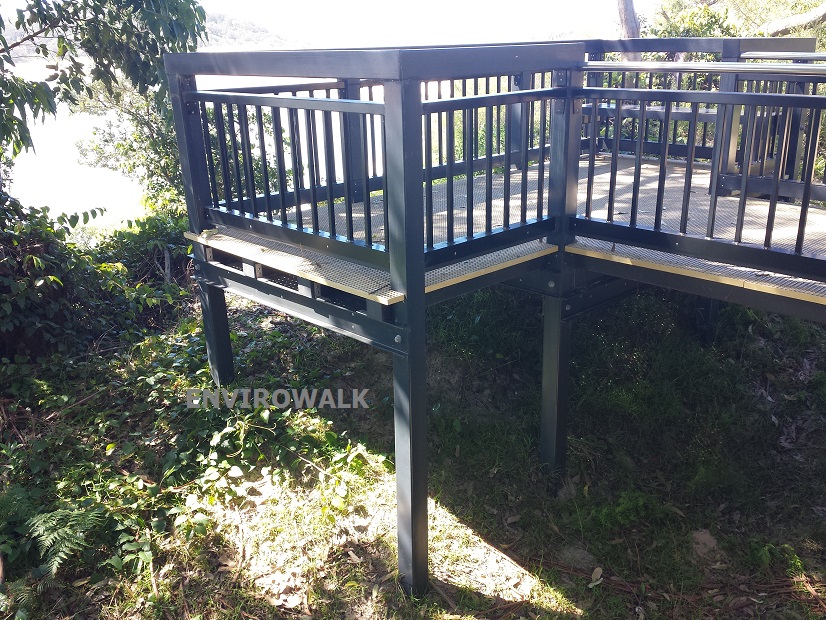

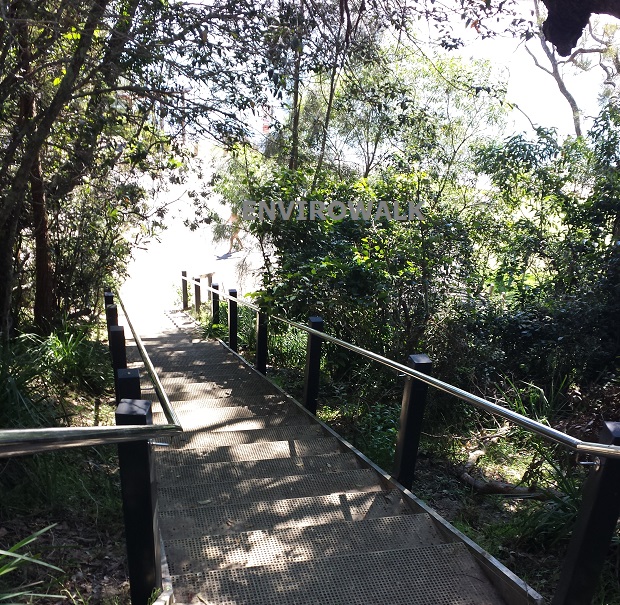

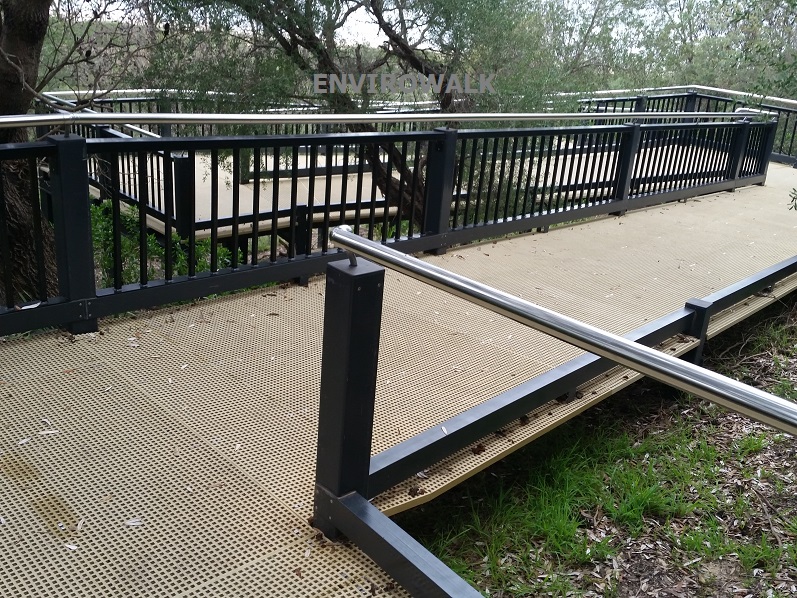

CASE STUDY [3]: Photos 10, 11 &12 Below: A 410 metre elevated boardwalk in Lake Conjola NSW: All structural members, H30 Sand Yellow Mini-Mesh and Envirowalk H40 Mini-Mesh EnviroTreads supplied by Envirowalk as per the full specifications with protective PU coating on all structural and handrail items. All Mini-Mesh and EnviroTreads manufactured only with pure, unblended, premium grade Type I (Iso) resin with a fine grit P5 anti-slip surface. NB: Photos 10, 11 & 12 were taken some 5 years after install and there has been no deterioration of either the structural members or the decking.

10. 11.

12.

 1.  2.    3.

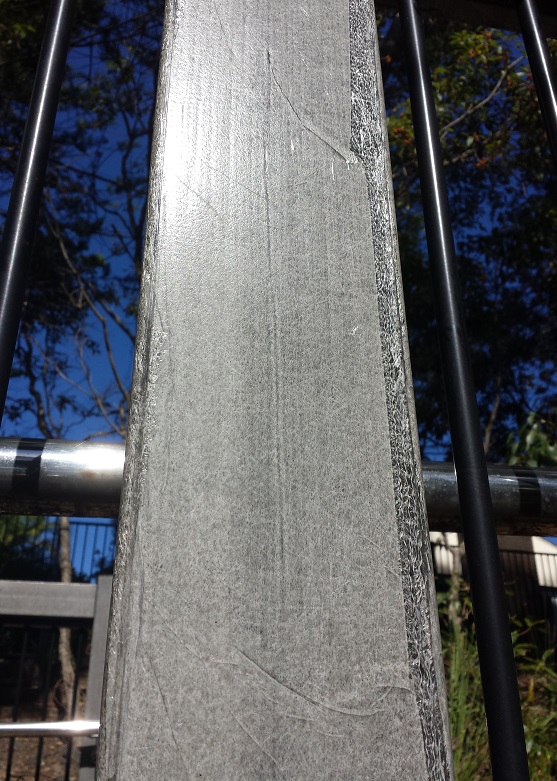

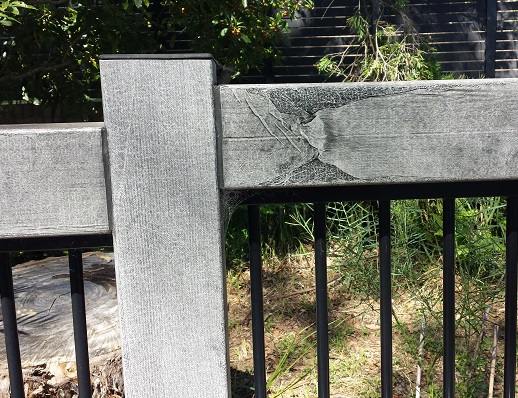

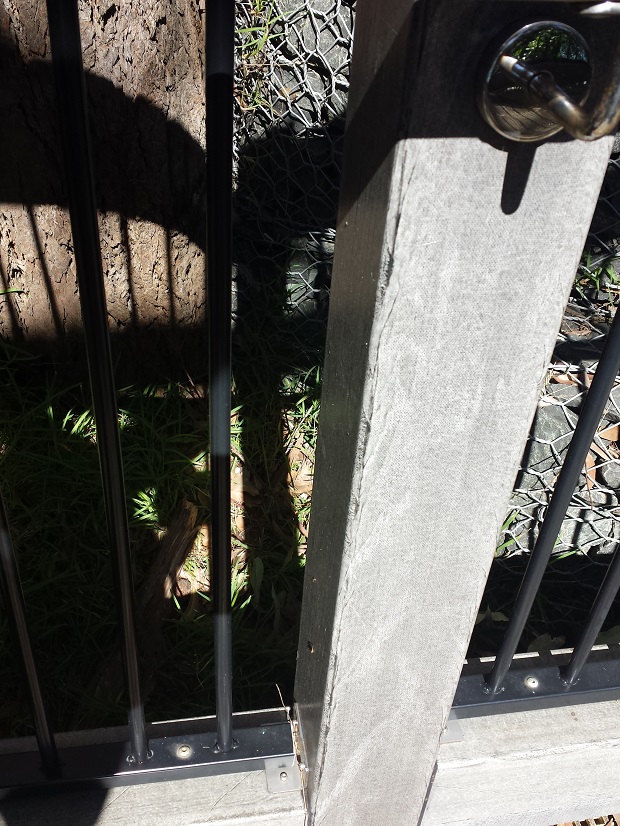

Photos 4 & 5 below reveal significant signs of cracking & deterioration

    4.           5.

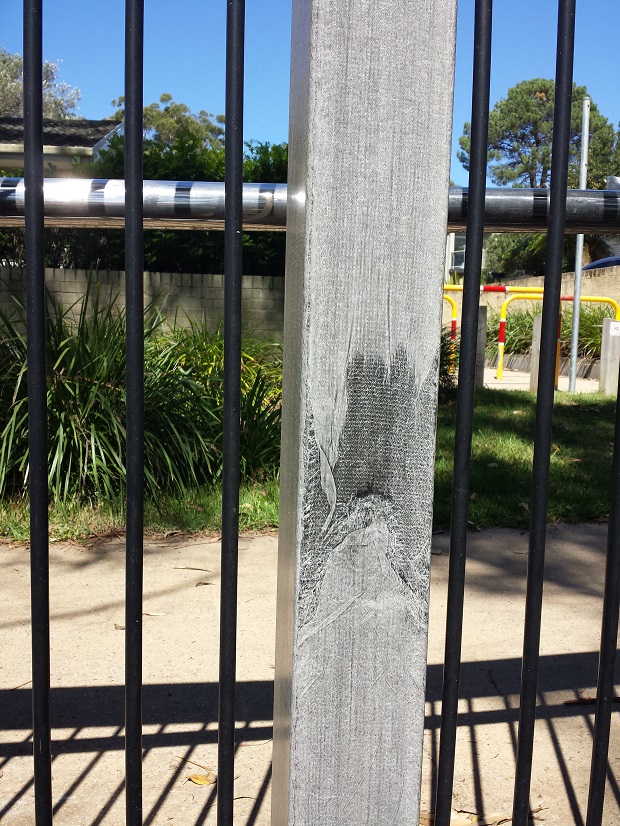

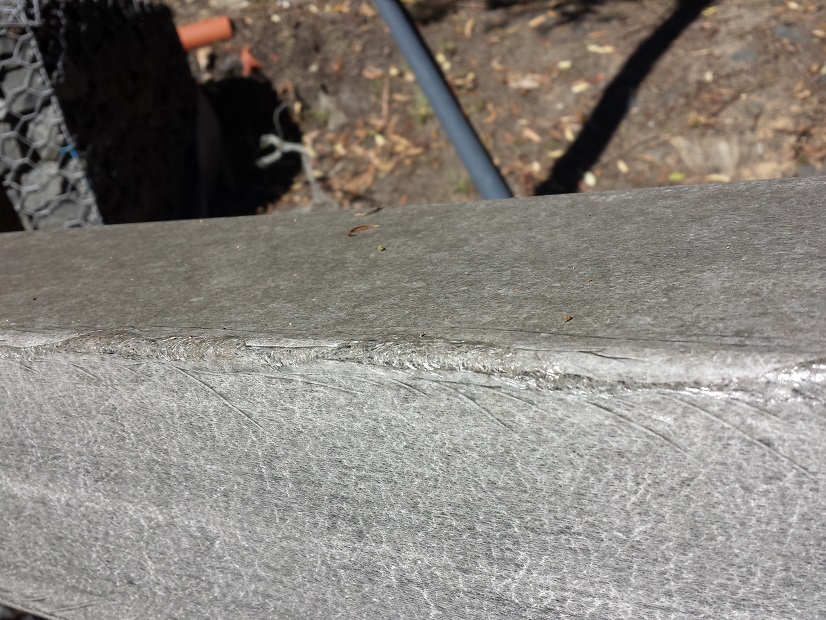

Photo 6 below showing where deterioration has exposed glass fibres.

   6.    7.

8.      9.

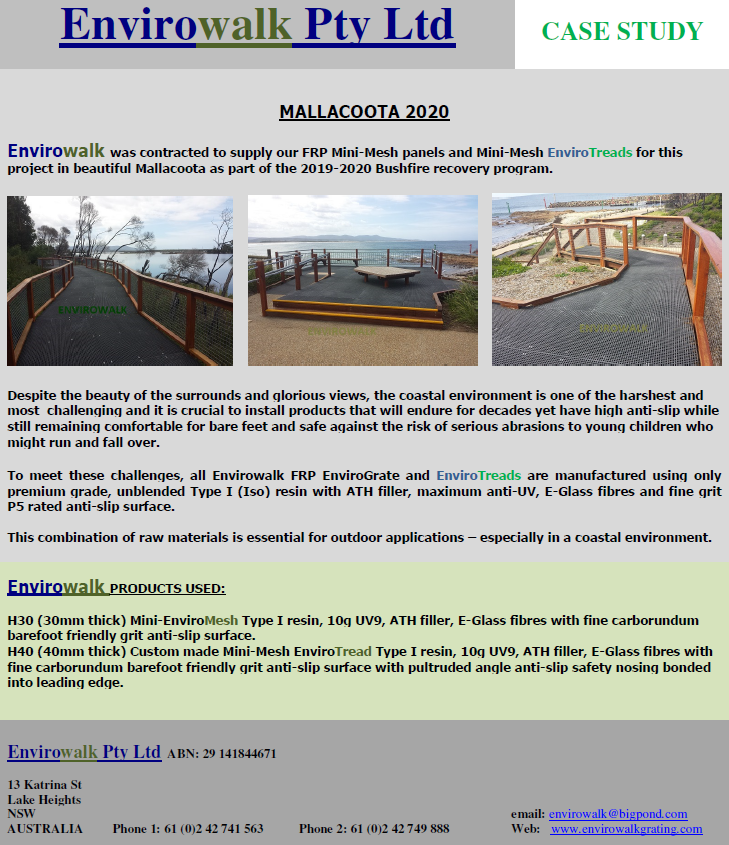

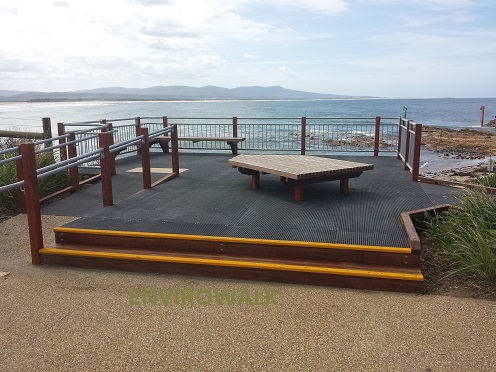

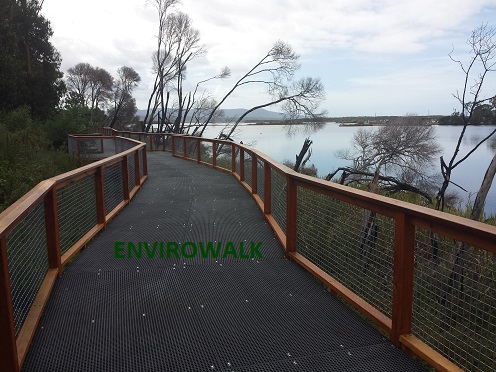

CASE STUDY - MALLACOOTA (PDF)

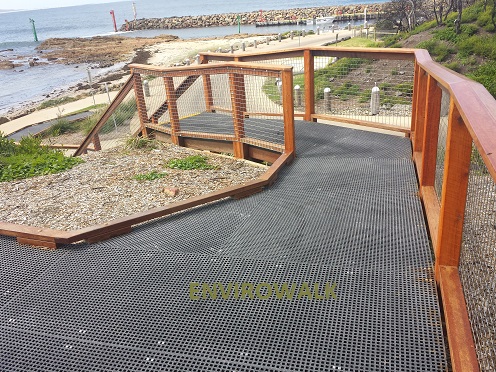

Envirowalk was contracted to supply our FRP Mini-Mesh panels and Mini-Mesh EnviroTreads for this project in beautiful Mallacoota as part of the 2019-2020 Bushfire recovery program.

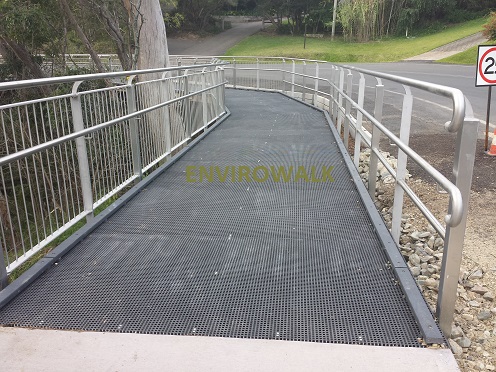

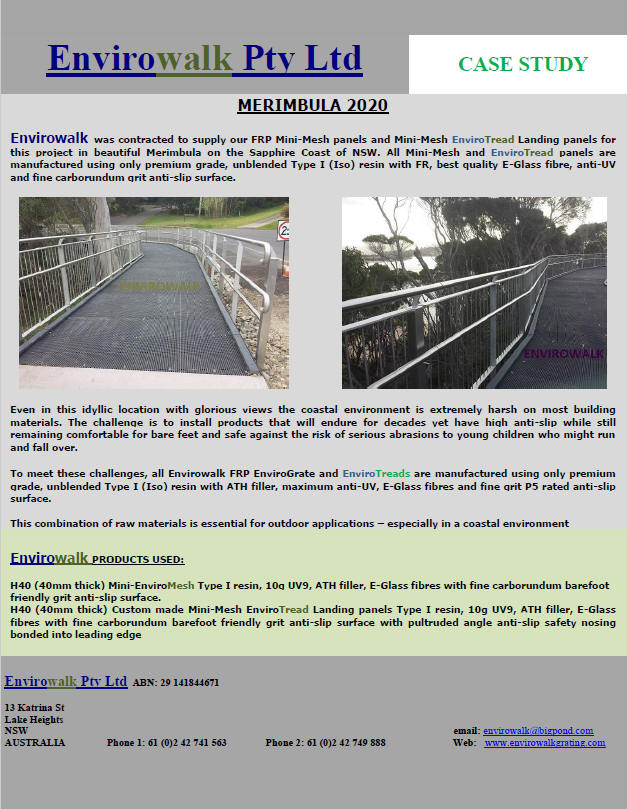

CASE STUDY - MERIMBULA 2020 (PDF)

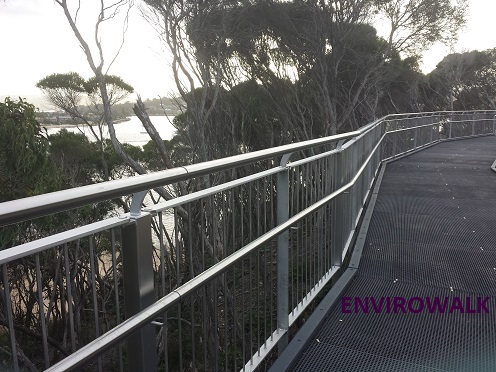

Envirowalk was contracted to supply our FRP Mini-Mesh panels and Mini-Mesh EnviroTread Landing panels for this project in beautiful Merimbula on the Sapphire Coast of NSW. All Mini-Mesh and EnviroTread panels are manufactured using only premium grade, unblended Type I (Iso) resin with FR, best quality E-Glass fibre, anti-UV and fine carborundum grit anti-slip surface.





OTHER BRIEF CASE STUDIES

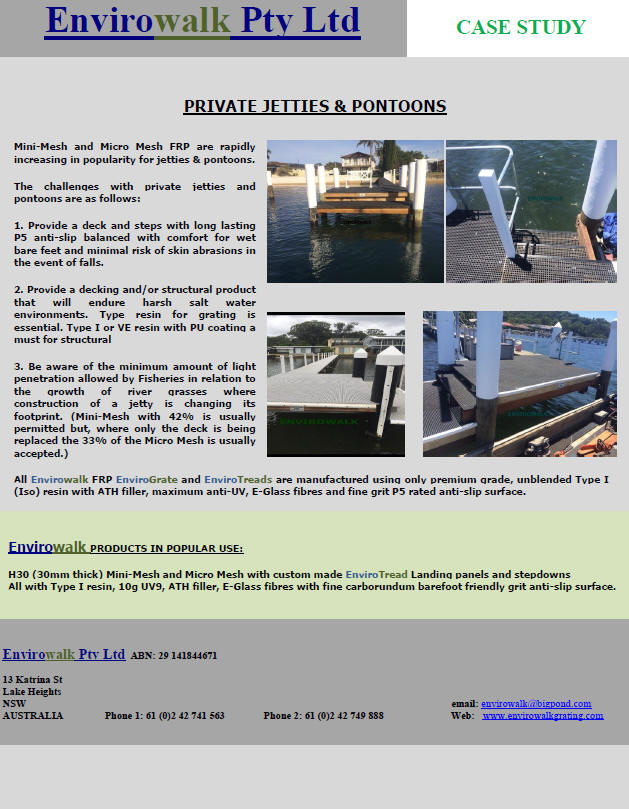

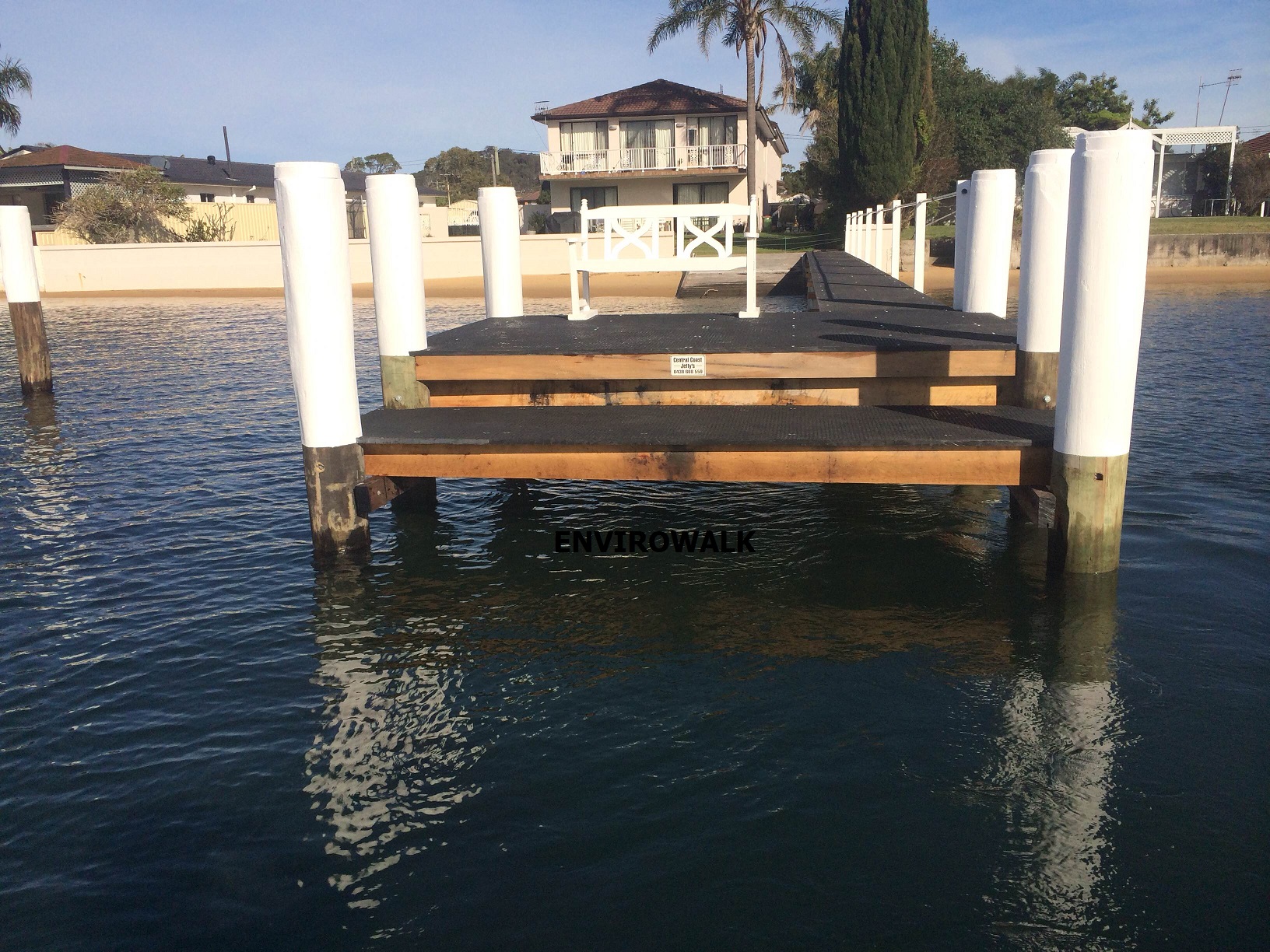

CASE STUDIES - PRIVATE JETTIES & PONTOONS pdf

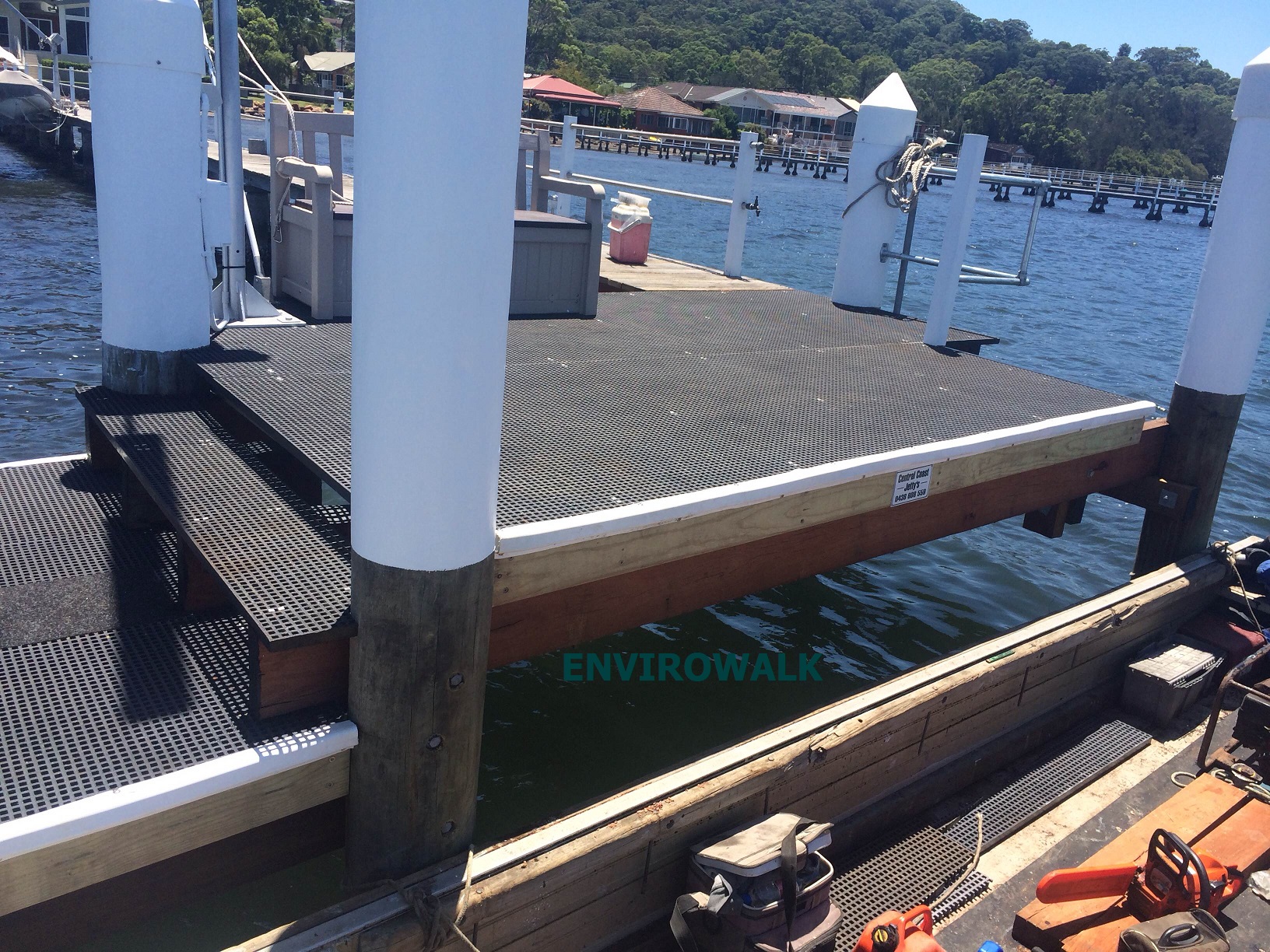

ENVIROWALK Mini-Mesh and Micro Mesh panels and EnviroTread custom steps & Landing panels have been in high demand for both private and commercial Jetties and Pontoons for more than 10 years. EnviroStructural profiles are also in increasing demand for Jetty sub-structure. Envirowalk maintains astounding success by supplying only premium grade, unblended resins with PU coating on the structural.

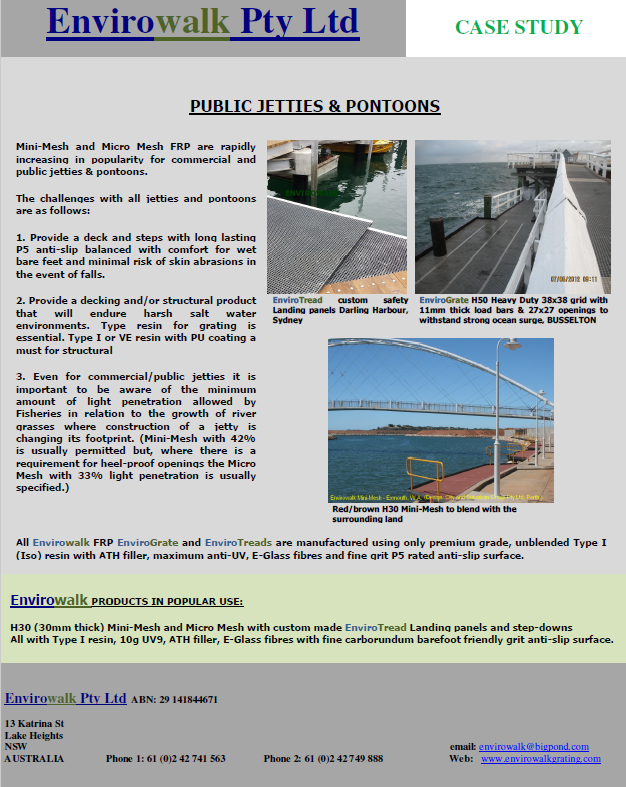

CASE STUDIES - PUBLIC JETTIES PDF

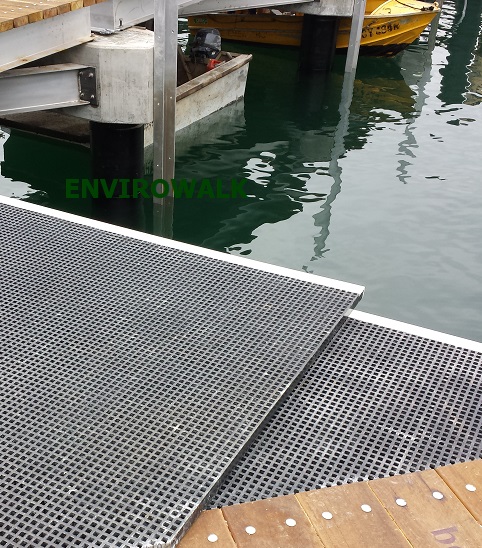

Immediate right: EnviroTread custom safety  steps & Landing panels with Safety nosing being installed on a Darling Harbour public Pier in Sydney.

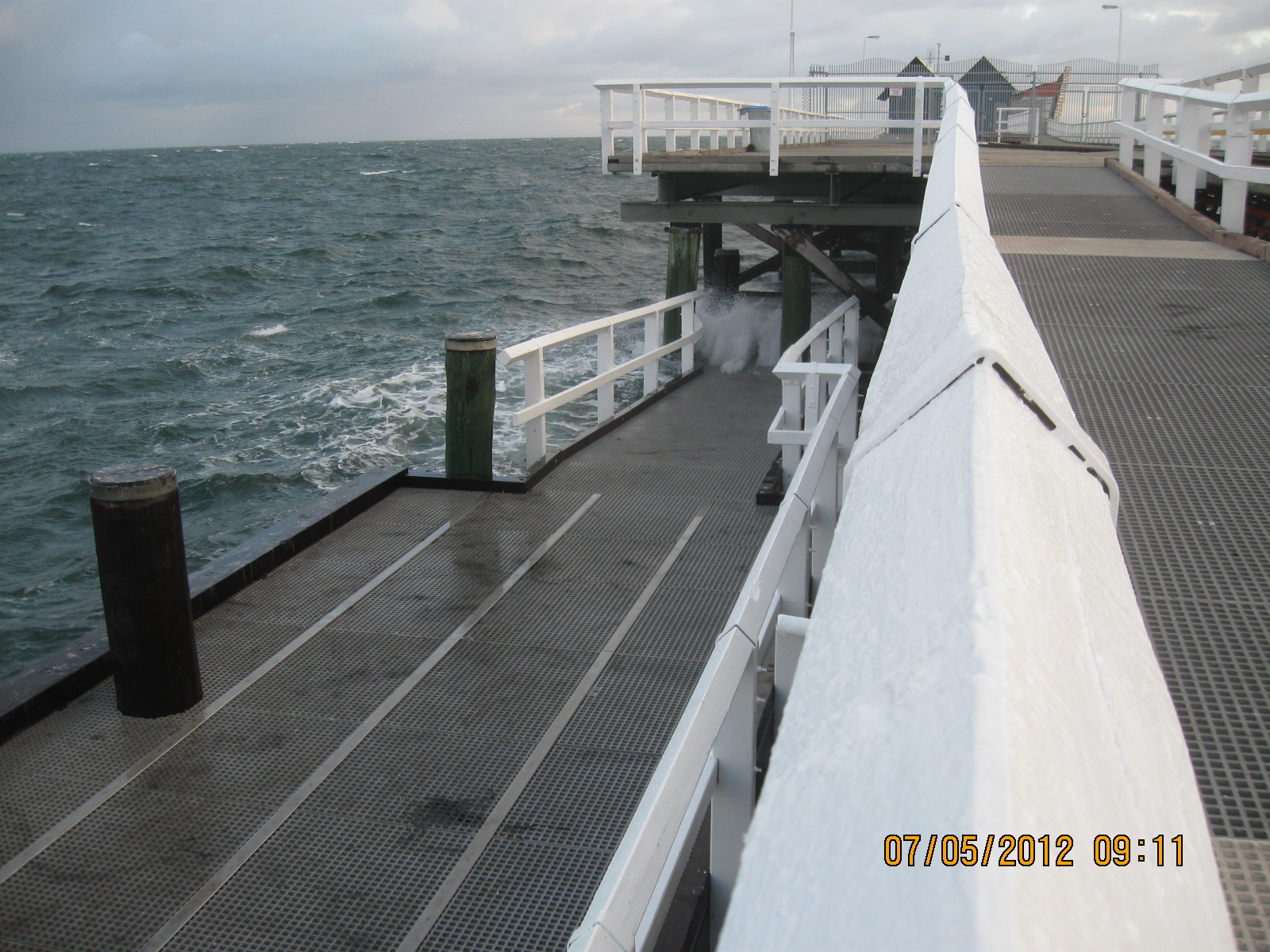

Centre right: Heavy Duty H50 38x38 grid EnviroGrate used for passenger ramp at the outermost end of Bussellton Jetty, W.A. - Mesh openings and weight designed to withstand ocean surge.

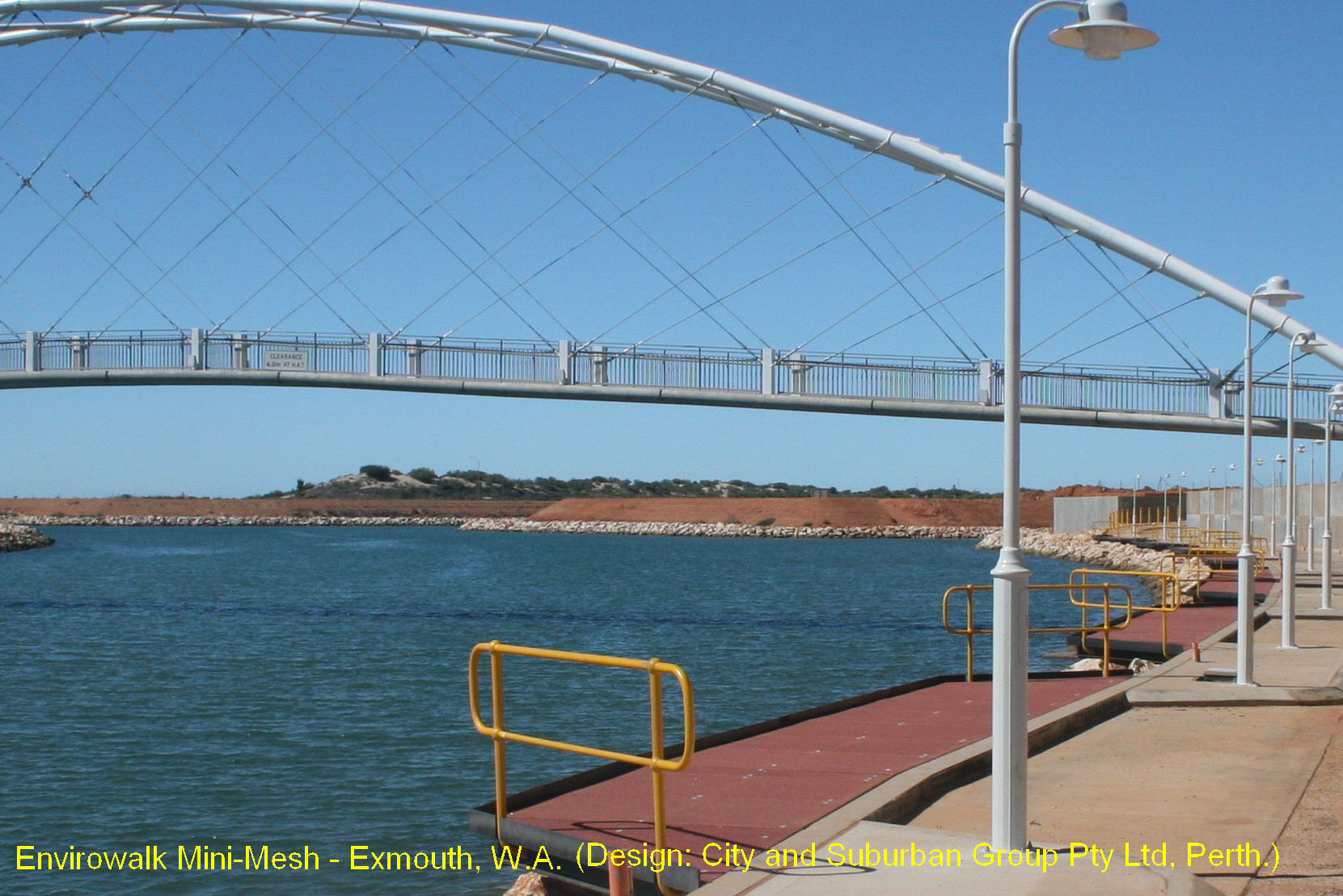

Far right: Custom EnviroTread landing panels used for pontoons in Exmouth W.A. 2008

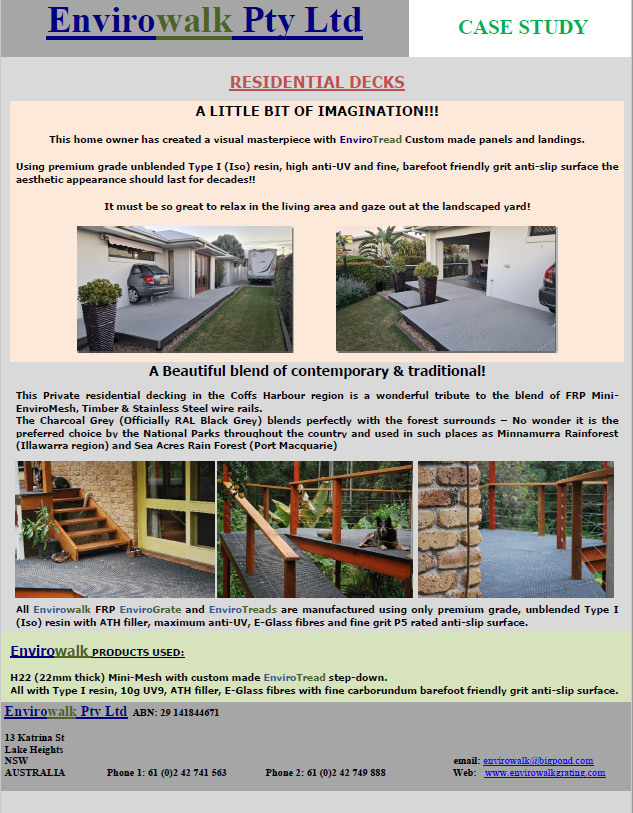

CASE STUDIES - RESIDENTIAL PDF

A LITTLE BIT OF IMAGINATION!!!

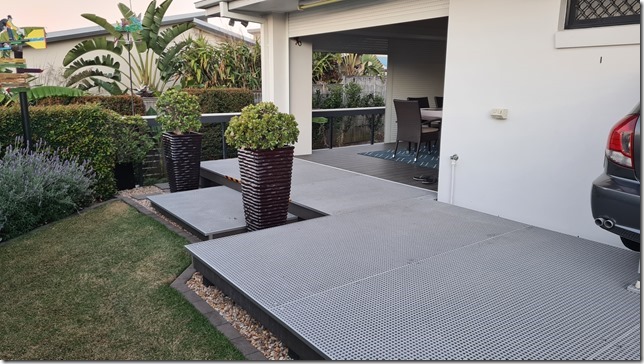

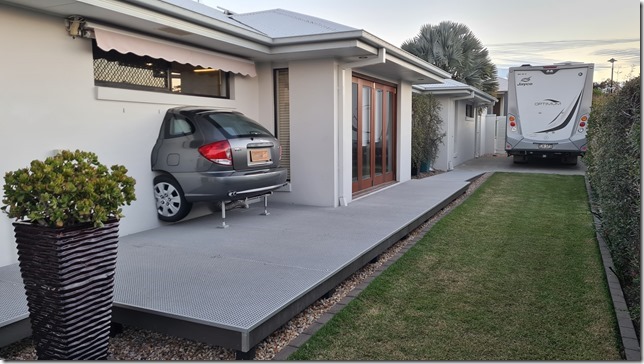

This home owner has created a visual masterpiece with EnviroTread Custom made panels and landings. With premium grade unblended Type I (Iso) resin, high anti-UV and fine, barefoot friendly grit anti-slip surface the aesthetic appearance should last for decades!!

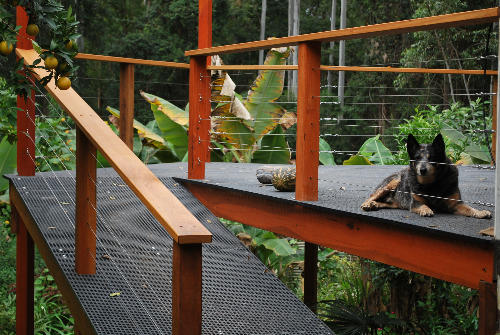

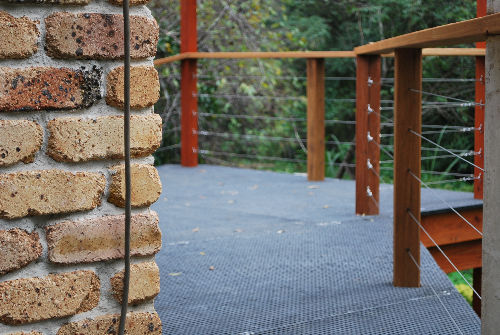

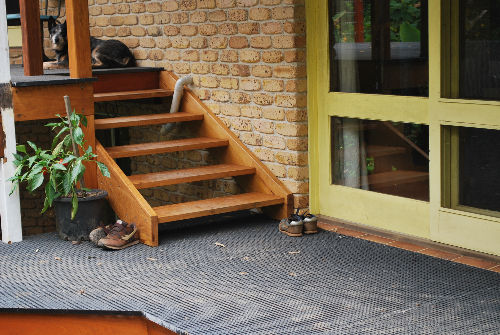

Beautiful blend of contemporary & traditional! This Private residential decking in the Coffs Harbour region is a wonderful tribute to the blend of FRP Mini-EnviroMesh, Timber & Stainless Steel wire rails. There is also lots of light penetration!

EnviroTread  EnviroTread EnviroTread  EnviroTread



SNAPSHOTS of just a few more of the many projects supplied by Envirowalk:

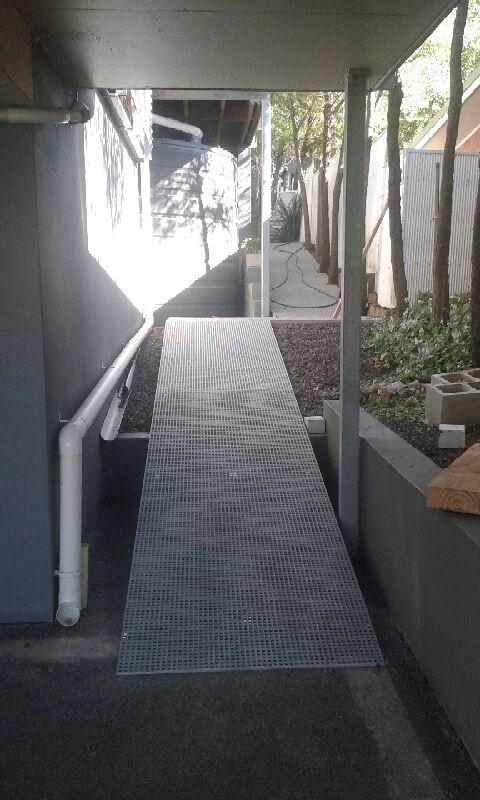

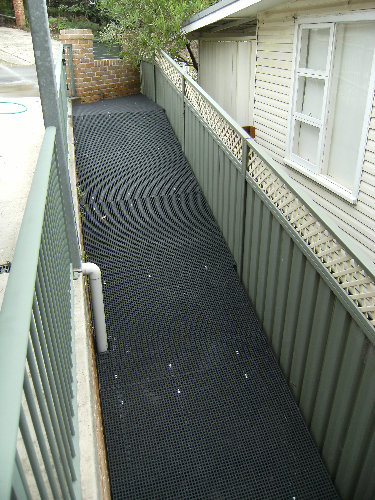

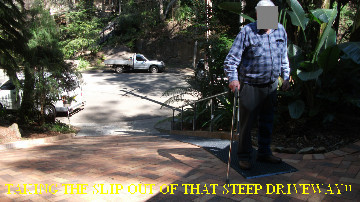

Access Ramps: Excellent safety traction and comfort for people with disabilities - or just to make it easier to get those Wheelie Bins out!!??

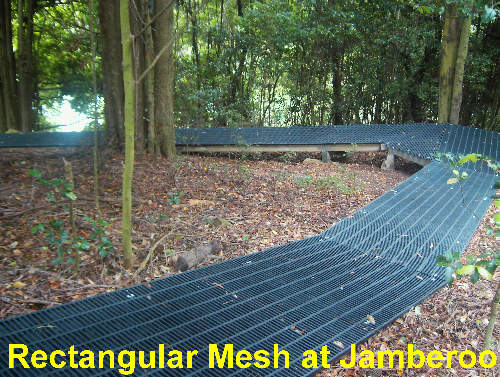

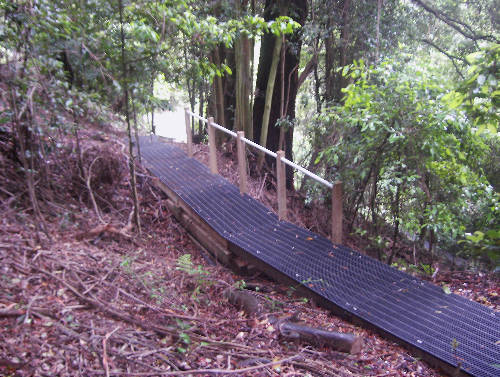

JAMBEROO RAINFOREST:

A walkway designed, supplied & constructed by Envirowalk using the economical Rectangular EnviroMesh: Although economical, Rectangular mesh does not lend itself well to walkways that change direction and is not sufficiently popular to warrant carrying in stock.

EnviroTread  EnviroTread EnviroTread  EnviroTread




EnviroTread  EnviroTread EnviroTread  EnviroTread  EnviroTread  EnviroTread EnviroTread  EnviroTread

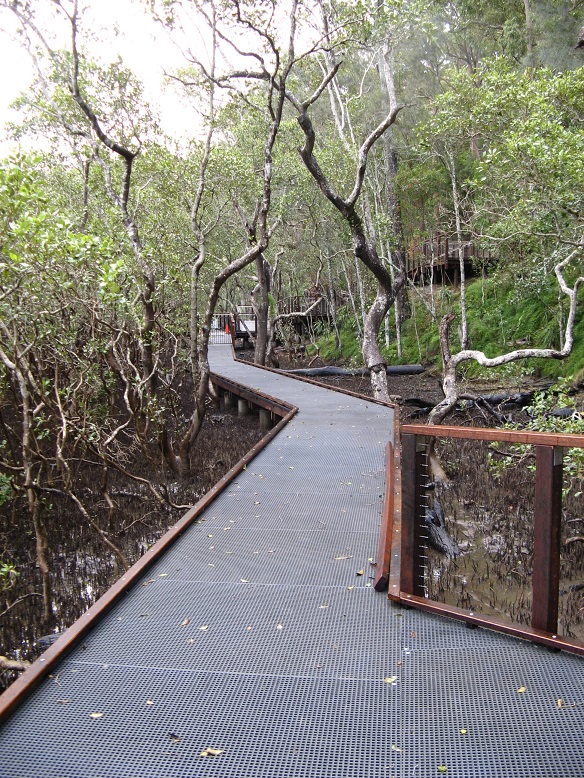

Immediate right: Charcoal grey Mini-EnviroMesh walkway through wetlands in Fleay's Wildlife Park, Qld.

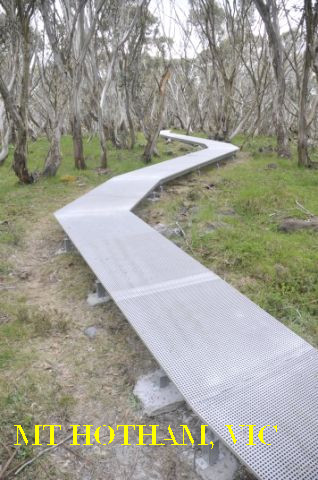

Centre Right: Light Grey Mini-EnviroMesh walkway through Paw Paw Plain, Mount Hotham, Vic.
Far Right: Micro EnviroMesh bridge in Port Macquarie, NSW
EnviroTread  EnviroTread EnviroTread  EnviroTread  EnviroTread  EnviroTread EnviroTread  EnviroTread

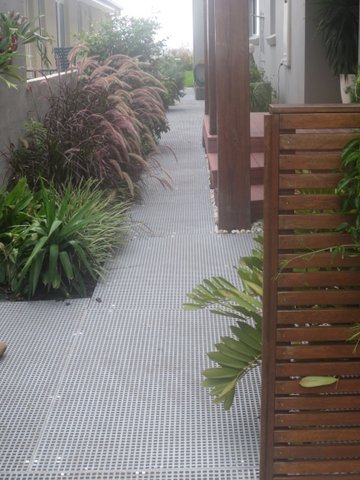

Residential Decking applications: Immediate right: Black/Charcoal Grey Mini-EnviroMesh, Kiama, NSW



Far Right: Mid tone grey Micro EnviroMesh with Micro Mesh EnviroTreads located at the near end, Braidwood, NSW
