PRODUCT INFORMATION & TECHNICAL DATA
Preliminary Notes:
1. Subject to a currently lead time for custom panels
is 12 - 16 weeks - a consequence of shipping delays.
2. To see other colour options please Google RAL
Colour Charts -
Select the Name and Code)
3. Colour abbreviations used in the following
tables:
Black-Grey [Charcoal] = DG; Light
Grey = LG; Yellow = Y; Sand Yellow = SY;
Green = G
4.
NB: Owing to the fact that stock levels are in a constant state of
fluctuation there may be occasions when some panel sizes are temporarily
unavailable.
EnviroTread EnviroTread EnviroTread
EnviroTread |
 |
|
EnviroTread EnviroTread

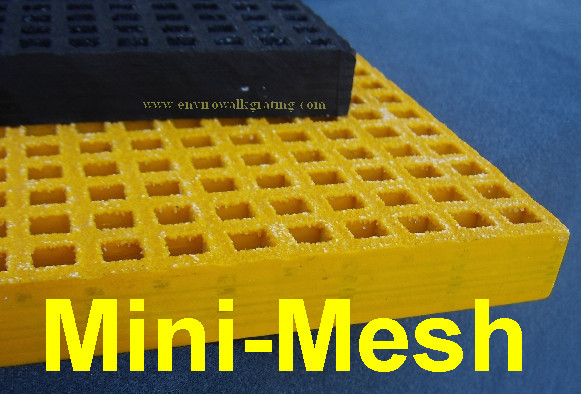

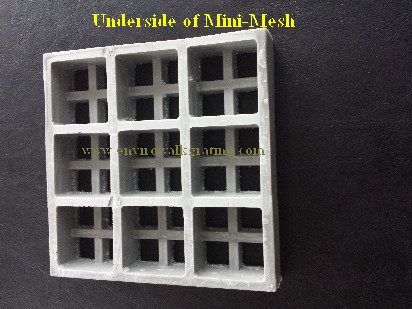

Mini-EnviroMesh
EnviroTread EnviroTread
Ideal for public walkways - especially in Parks and Reserves.
|
General Details |
| GRID PATTERN |
20x20/40x40 |
| MAIN GRID LOAD BAR CENTRES |
40 x 40 |
| MINOR GRID BAR CENTRES |
20 x 20 |
| APERTURE SIZE |
13 x 13 |
| LOAD BAR THICKNESS TOP/BOTTOM |
7/6 |
| OPEN SPACE |
42% |
| |
|
| NB: The 19x19/38x38 grid Mini-Mesh and
12x12/38x38 Micro Mesh are also available in nominal panels sizes up to
1220x3660: However, as these are prone to inconsistencies in load bar
spacing & grid patterns we recommend the Mini and Micro Mesh based
on the main 40x40 grid as they are always consistent.
The following are regular stock size panels. However, where a lead
time of 6-12 weeks is available custom size Mini-Mesh and Micro Mesh
panels can be made up to 1527x4047. To calculate the nearest closed side
dimensions work downwards in 40mm modules: e.g. 1487x4007, 1407x3927,
1527x3727, 1447x4047 etc |
|
Height - Thickness |
Panel Size |
Surface |
Resin Type |
Weight Kg/smē |
Stock Colours |
|
14 |
1247x3007 |
Grit |
Isophthalic (I) |
11.0 |
DG & LG |
| |
|
|
|
|
|
|
22 |
1007x3007 |
Grit |
Isophthalic (I) |
15.0 |
DG & LG |
|
22 |
1247x1687 |
Grit |
Isophthalic (I) |
15.0 |
LG |
|
22 |
1247x1807 |
Grit |
Isophthalic (I) |
15.0 |
DG & LG |
|
22 |
1247x2007 |
Grit |
Isophthalic (I) |
15.0 |
DG & LG |
|
22 |
1247x2407 |
Grit |
Isophthalic (I) |
15.0 |
DG & LG |
|
22 |
1247x3007 |
Grit |
Isophthalic (I) |
15.0 |
DG & LG |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
22 |
1527x1807 |
Grit |
Isophthalic (I) |
15.0 |
LG |
|
22 |
1527x1807 |
Grit |
Isophthalic (I) |
15.0 |
DG & LG |
|
22 |
1527x2007 |
Grit |
Isophthalic (I) |
15.0 |
DG & LG |
|
22 |
1527x2407 |
Grit |
Isophthalic (I) |
15.0 |
DG & LG |
|
22 |
1527x3007 |
Grit |
Isophthalic (I) |
15.0 |
DG & LG |
| |
|
|
|
|
|
|
30 |
1247x1647 |
Grit |
Isophthalic (I) |
18.5 |
DG |
|
30 |
1247x1807 |
Grit |
Isophthalic (I) |
18.5 |
DG & LG |
|
30 |
1247x2007 |
Grit |
Isophthalic (I) |
18.5 |
DG & LG |
|
30 |
1247x2407 |
Grit |
Isophthalic (I) |
18.5 |
DG & LG |
|
30 |
1247x2527 |
Grit |
Isophthalic (I) |
18.5 |
DG & LG |
|
30 |
1247x3007 |
Grit |
Isophthalic (I) |
18.5 |
DG & LG |
| |
|
|
|
|
|
|
30 |
1007x2247 |
Grit |
Isophthalic (I) |
18.5 |
DG & LG |
|
30 |
1007x3007 |
Grit |
Isophthalic (I) |
18.5 |
DG & LG |
| |
|
|
|
|
|
|
30 |
1527x1647 |
Grit |
Isophthalic (I) |
18.5 |
LG |
|
30 |
1527x1807 |
Grit |
Isophthalic (I) |
18.5 |
DG & LG |
|
30 |
1527x2007 |
Grit |
Isophthalic (I) |
18.5 |
DG & LG |
|
30 |
1527x2247 |
Grit |
Isophthalic (I) |
|
DG |
|
30 |
1527x2407 |
Grit |
Isophthalic (I) |
|
DG & LG |
|
30 |
1527x3007 |
Grit |
Isophthalic (I) |
18.5 |
DG & LG |
|
|
|
|
|
|
|
|
40 |
1247x2007 |
Grit |
Isophthalic (I) |
24 |
DG |
|
40 |
1247x2247 |
Grit |
Isophthalic (I) |
24 |
DG |
|
40 |
1247x2527 |
Grit |
Isophthalic (I) |
24 |
DG |
|
40 |
1247x3647 |
Grit |
Isophthalic (I) |
24 |
DG |
| |
|
|
|
|
|
|
40 |
1527x2247 |
Grit |
Isophthalic (I) |
24 |
DG |
|
40 |
1527x2527 |
Grit |
Isophthalic (I) |
24 |
DG |
EnviroTread EnviroTread EnviroTread
EnviroTread EnviroTread EnviroTread
|
| |
|
EnviroTread EnviroTread
Micro
EnviroMesh
EnviroTread EnviroTread |
|

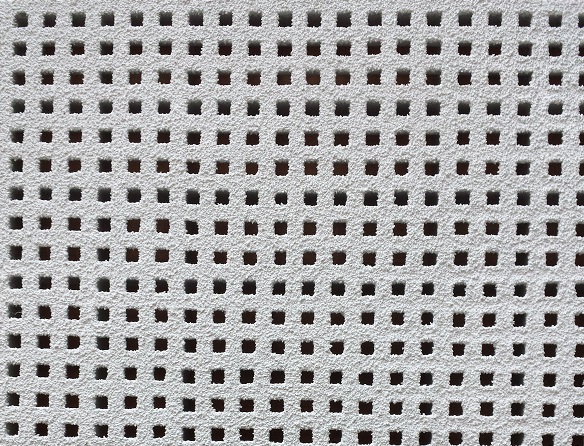

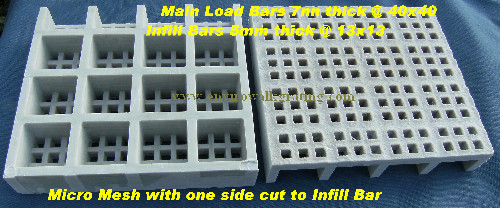

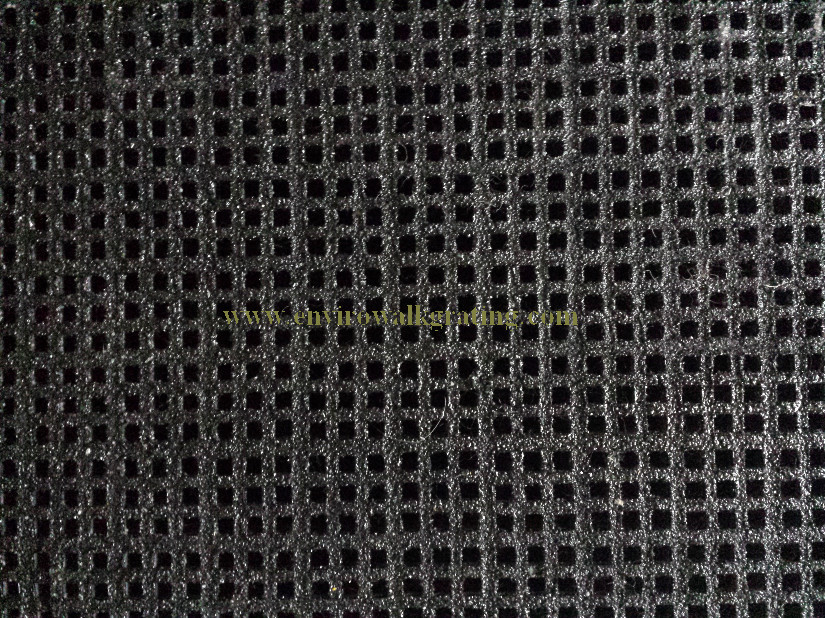

& Now - Enviro
Micro6.8 !! At the
time of publishing Envirowalk Micro 6.8 is the only Micro Mesh available in
Australia with openings less than 8mm square - They are just 6.8x6.8 with
all load bars and in-fill load bars same surface thickness and providing a
completely symmetrical, aesthetic appearance and a TRULY HEEL-PROOF GRID
PATTERN. The base grid pattern remains at 13x13/40x40 with dependable
symmetry in both directions. |

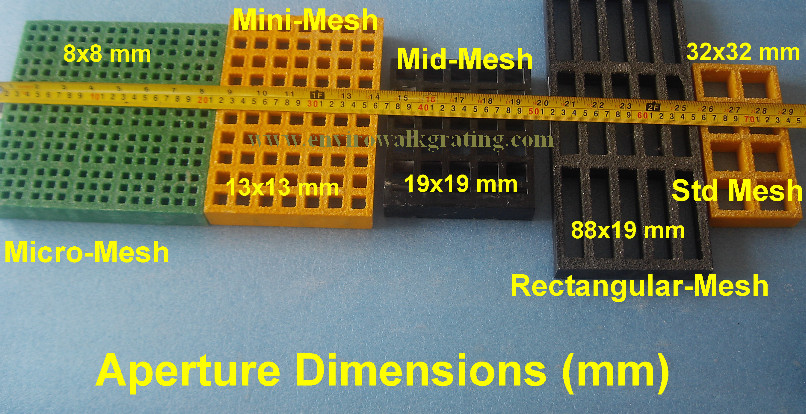

 Compare
the difference with the regular Micro Mesh below with the 8x8 openings!!! |
|
EnviroTread EnviroTread EnviroTread
EnviroTread

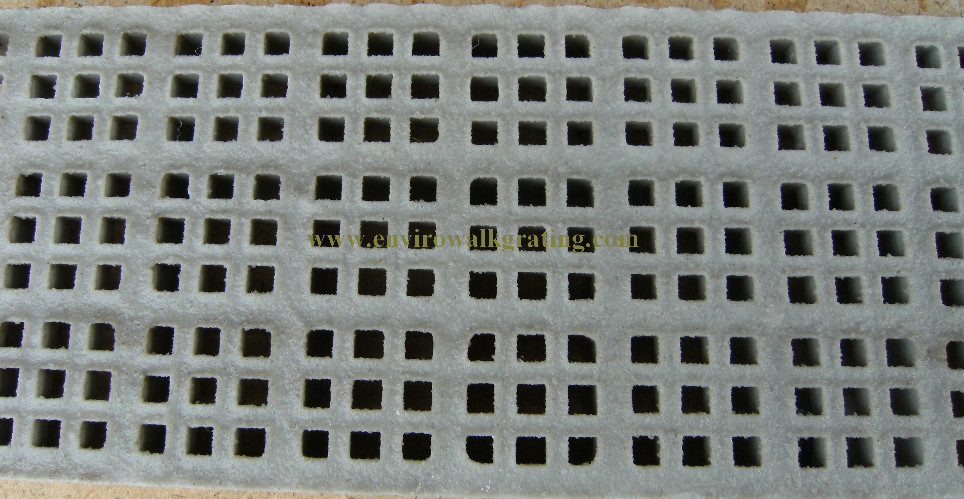

Aperture sizes are a mere 8x8 mm.
|
General Details |
| GRID PATTERN |
13x13/40x40 |
| MAIN GRID LOAD BAR CENTRES |
40 x 40 |
| MINOR GRID BAR CENTRES |
13 x 13 |
| APERTURE SIZE |
8 x 8 |
| LOAD BAR THICKNESS TOP/BOTTOM |
6.5/4.5/5.0 |
| OPEN SPACE |
30% |
EnviroTread EnviroTread EnviroTread
EnviroTread EnviroTread EnviroTread
|
Height - Thickness |
Panel Size |
Surface |
Resin Type |
Weight Kg/smē |
Stock Colours |
| 22 |
1007x3007 |
Grit |
Isophthalic (I) |
15 |
DG & LG |
| |
|
|
|
|
|
| 22 |
1247x2007 |
Grit |
Isophthalic (I) |
15 |
DG & LG |
| 22 |
1247x2407 |
Grit |
Isophthalic (I) |
15 |
DG & LG |
|
22 |
1247x3007 |
Grit |
Isophthalic (I) |
15 |
DG & LG |
| |
|
|
|
|
|
| 22 |
1527x2007 |
Grit |
Isophthalic (I) |
15 |
DG & LG |
| 22 |
1527x3007 |
Grit |
Isophthalic (I) |
15 |
DG & LG |
| |
|
|
|
|
|
| 30 |
1007x3007 |
Grit |
Isophthalic (I) |
19.5 |
DG & LG |
| |
|
|
|
|
|
|
30 |
1247x2007 |
Grit |
Isophthalic (I) |
19.5 |
DG & LG |
| |
1247x2407 |
Grit |
Isophthalic (I) |
19.5 |
DG & LG |
| |
1247x2527 |
Grit |
Isophthalic (I) |
19.5 |
DG & LG |
|
30 |
1247x3007 |
Grit |
Isophthalic (I) |
19.5 |
DG |
| |
|
|
|
|
|
| 30 |
1527x1807 |
Grit |
Isophthalic (I) |
19.5 |
DG & LG |
|
30 |
1527x2007 |
Grit |
Isophthalic (I) |
19.5 |
DG & LG |
| |
|
|
|
|
|
| 40 |
1247x3007 |
Grit |
Isophthalic (I) |
24 |
DG |
| 40 |
1247x3647 |
Grit |
Isophthalic (I) |
24 |
DG |
| |
|
|
|
|
|
| 40 |
1527x2247 |
Grit |
Isophthalic (I) |
24 |
DG |
EnviroTread EnviroTread EnviroTread
EnviroTread EnviroTread EnviroTread
|
|
Standard Industrial EnviroGrate |
|
(Now includes 615mm
wide Panels H15 Roof Top Access)
|
General Details |
| GRID PATTERN |
38x38 |
| LOAD BAR THICKNESS TOP/BOTTOM |
7/6 |
| OPEN SPACE |
68% |
| |
|

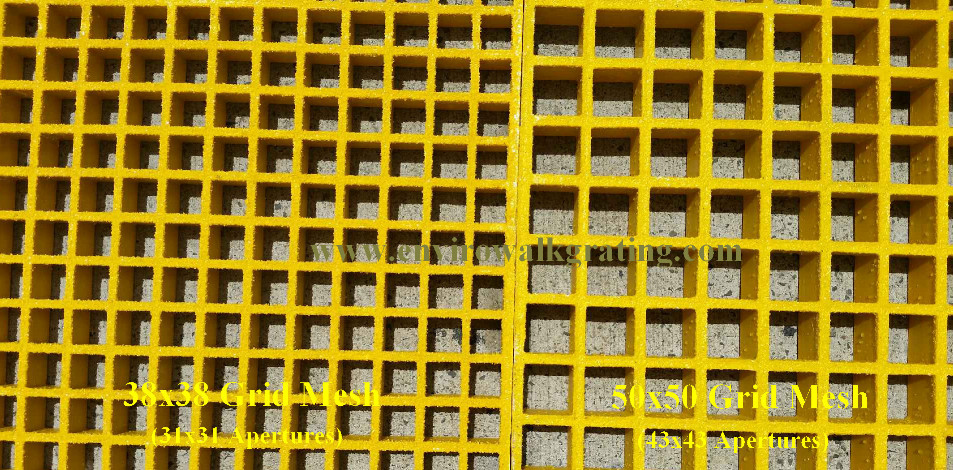

NB: 38x38 Grid mesh panel
dimensions may vary by up to 5mm: e.g. 1220x3660 panels may be 1225x3665:
Allowances should be made for this when constructing frames to contain panels.
|
Height - Thickness |
Panel Size |
Surface |
Resin Type |
Weight Kg/smē |
Stock Colours |
| |
|
|
|
|
|
|
15 |
616x3660 |
Grit |
Isophthalic (I) |
7.0 |
Y |
|
15 |
616x3660 |
Grit |
Isophthalic (I) |
7.0 |
G |
|
15 |
616x3660 |
Grit |
Isophthalic (I) |
7.0 |
LG |
| |
|
|
|
|
|
|
25 |
998x2255 |
Grit |
Isophthalic (I) |
12.9 |
Y |
|
25 |
998x2255 |
Grit |
Isophthalic (I) |
12.9 |
G |
|
25 |
998x2255 |
Grit |
Isophthalic (I) |
12.9 |
DG |
| |
|
|
|
|
|
|
25 |
998x3017 |
Grit |
Isophthalic (I) |
12.9 |
Y |
|
25 |
998x3017 |
Grit |
Isophthalic (I) |
12.9 |
G |
|
25 |
998x3017 |
Grit |
Isophthalic (I) |
12.9 |
DG |
| |
|
|
|
|
|
|
25 |
1220X3660 |
Grit |
Isophthalic (I) |
12.9 |
Y |
|
25 |
1220X3660 |
Grit |
Isophthalic (I) |
12.9 |
G |
|
25 |
1220X3660 |
Grit |
Isophthalic (I) |
12.9 |
DG |
| |
|
|
|
|
|
|
38 |
998x2255 |
Grit |
Isophthalic (I) |
12.9 |
Y |
|
38 |
998x2255 |
Grit |
Isophthalic (I) |
12.9 |
G |
| |
|
|
|
|
|
|
38 |
998x3017 |
Grit |
Isophthalic (I) |
20.0 |
Y |
|
38 |
998x3017 |
Grit |
Isophthalic (I) |
20.0 |
G |
|
38 |
998x3017 |
Grit |
Isophthalic (I) |
20.0 |
DG |
| |
|
|
|
|
|
|
38 |
1220X3660 |
Grit |
Isophthalic (I) |
20.0 |
Y |
|
38 |
1220X3660 |
Grit |
Isophthalic (I) |
20.0 |
G |
|
38 |
1220X3660 |
Grit |
Isophthalic (I) |
20.0 |
DG |
| |
|
|
|
|
|
|
25 |
1220X3660 |
Grit |
Vinylester (VE) |
20.0 |
G |
|
25 |
1220X3660 |
Grit |
Vinylester (VE) |
20.0 |
Y |
| |
|
|
|
|
|
|
38 |
998x3017 |
Grit |
Vinylester (VE) |
20.0 |
Y |
|
38 |
1220X3660 |
Grit |
Vinylester (VE) |
20.0 |
Y |
|
38 |
1220X3660 |
Grit |
Vinylester (VE) |
20.0 |
G |
| |
|
|
|
|
|
|
50 |
1220X3660 |
Grit |
Isophthalic (I) |
24.5 |
G |
|
50 |
1220X3660 |
Grit |
Isophthalic (I) |
24.5 |
Y |
|
50 |
1220X3660 |
Grit |
Vinylester (VE) |
24.5 |
Y |
| |
|
|
|
|
|
|
|
|
| |
|
EnviroTread EnviroTread
EnviroTread
EnviroTread EnviroTread |
|

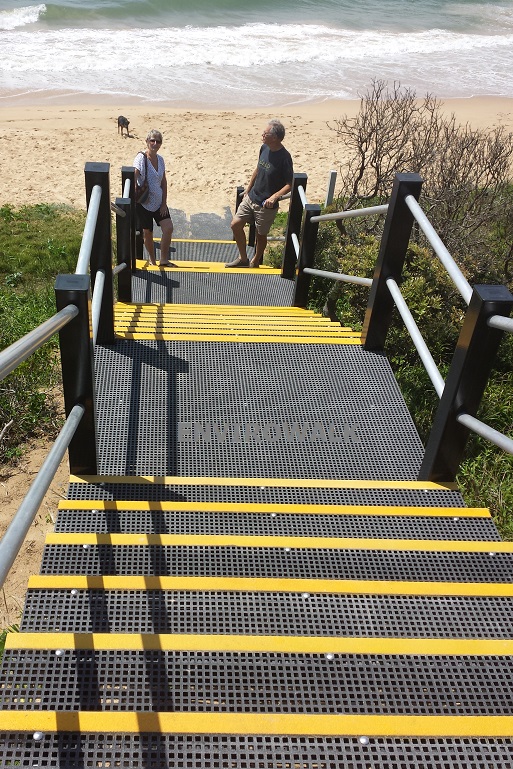

  Envirowalk
EnviroTread range is available in both Standard Mesh and Mini-Mesh. Standard Mesh
EnviroTreads can be
either 38mm or 50mm thick. Mini-Mesh EnviroTreads are available only in 40mm Thick
panels. All EnviroTreads are supplied with a Grit anti-slip surface and may be
obtained in a variety of colours subject to order quantity. EnviroTreads
generally have a nosing that is of a different colour to the main body of
the Tread. A solid Black/Grey FRP Kickplate can be bonded and pop-riveted
along the back edge of Treads if required - or supplied separate for DIY.
|
Height - Thickness |
Style |
Stock Sizes |
Surface |
Resin Type |
Weight Kg/Lm |
Stock Colours |
| 40 |
Mini-Mesh |
333x3687 |
Grit |
Isophthalic (I) |
8.5 |
DG+LG Glow Nosing |
| 40 |
Mini-Mesh |
333x3687 |
Grit |
Isophthalic (I) |
8.5 |
DG+Y Glow Nosing |
| |
|
|
|
|
|
|
| 40 |
Micro Mesh |
333x3687 |
Grit |
Isophthalic (I) |
8.5 |
DG+LG Glow Nosing |
| |
|
|
|
|
|
|

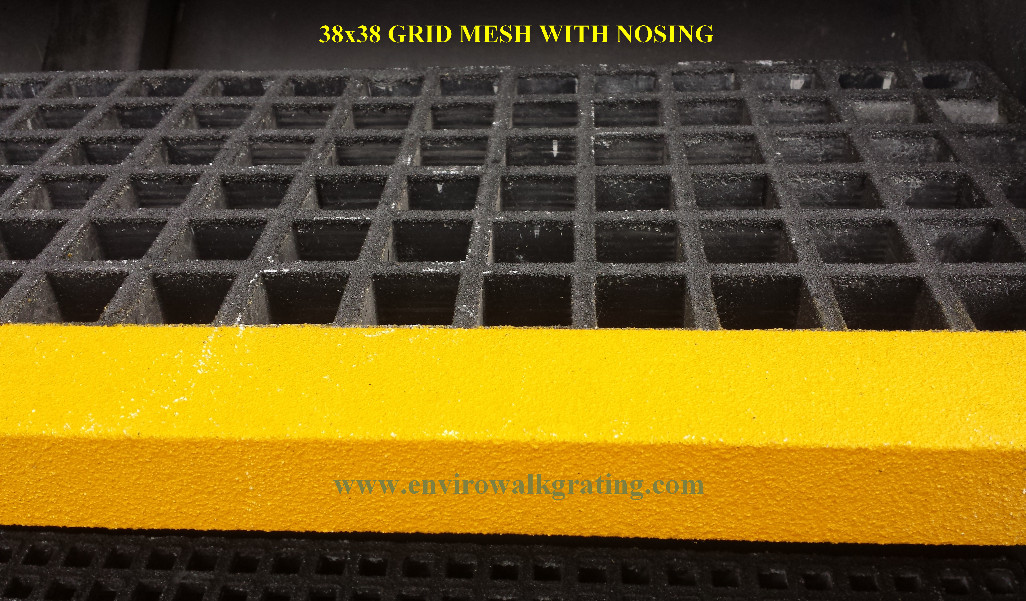

| 38 |
38x38 Grid Mesh |
279x3665 |
Grit |
Vinylester (VE) |
6 |
G+Y Nosing |
| |
38x38 Grid Mesh |
279x3665 |
Grit |
Vinylester (VE) |
6 |
Y+B Nosing |
| |
38x38 Grid Mesh |
279x3665 |
Grit |
Vinylester (VE) |
6 |
B+Y Nosing |
NB: Stair Treads can be cut to length as required.
|
|
EnviroTread EnviroTread

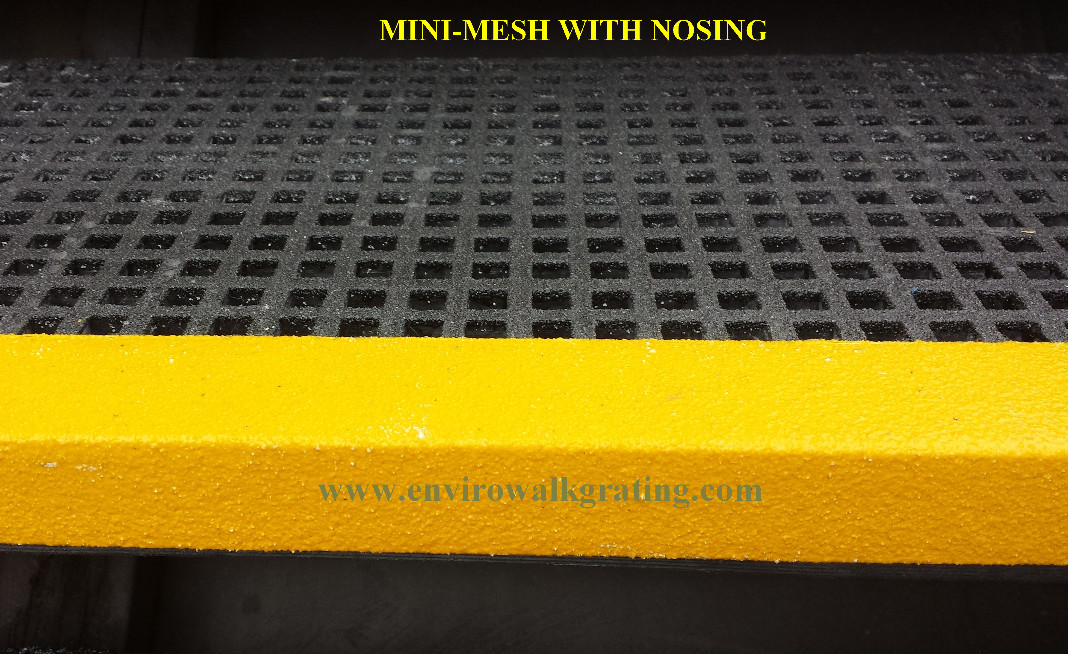

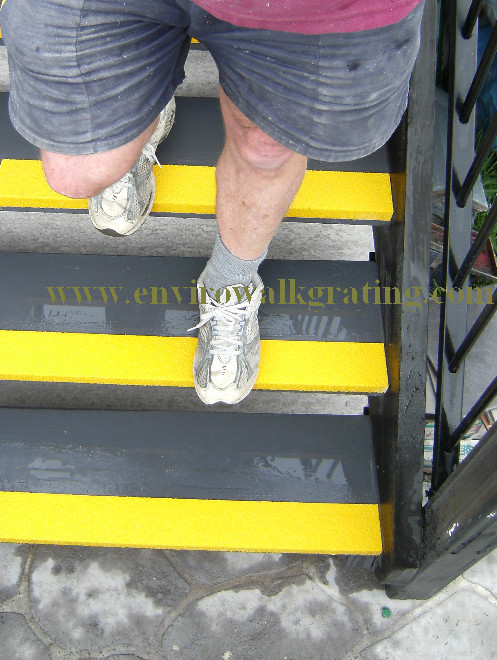

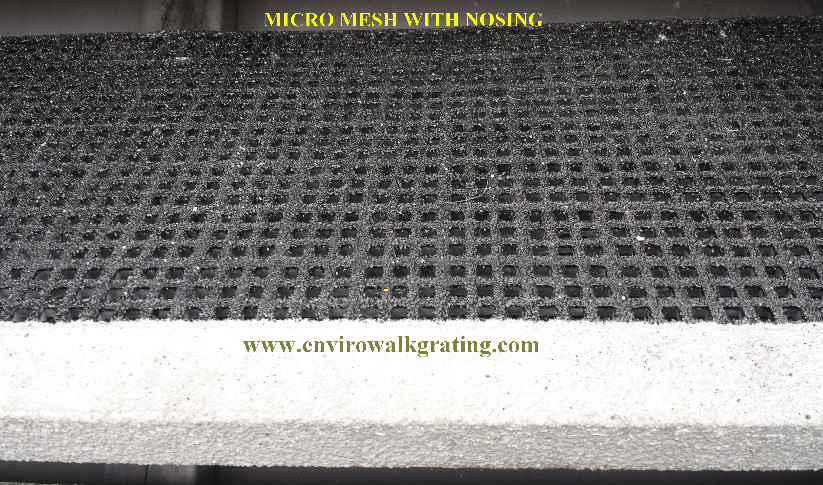

EnviroTread Safety Nosing
EnviroTread EnviroTread
|
|
 Envirowalk
EnviroTread
Safety nosing is 76 x 25 mm, 65x10 50x20 and 50x50 and normally available ex stock in lengths 2420 mm
and 3020mm. Lengths may be cut
to desired lengths if
required. Stock nosing is Type VE resin. The safety nosing has the excellent traction afforded by long lasting
silicone grit and is an excellent precaution in wet areas.
EnviroTread EnviroTread EnviroTread
EnviroTread
|
|

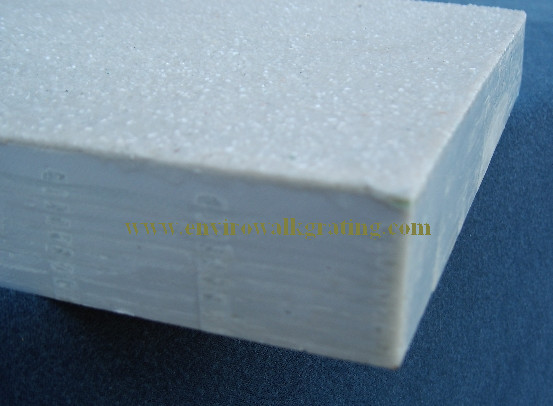

EnviroCT: Covered top with Grit Anti-slip Surface |
|
Covered Top FRP grating is a Standard Mesh Grating with a
3mm or 5mm thick plate bonded to the upper surface. (A checker Plate style
surface is also available.)
For standard panel dimensions please refer to the tables
provided above for open mesh gratings.
|
|
Open Space comparisons
|
|
|
|

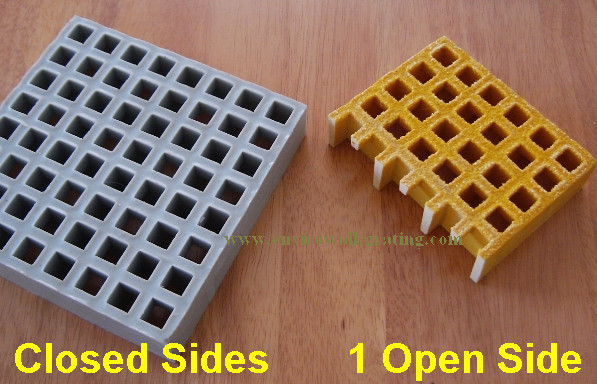

Closed
and open sides: |
|
Although there is a general preference for
treads and panels to have closed sides all around, they may also be cut to
an exact width which
may result in at least one 'open' side. (Refer image: Yellow mesh has 1 open
side.) |
|
|
ENVIROWALK FRP PULTRUDED PRODUCTS. |
|
Grating |

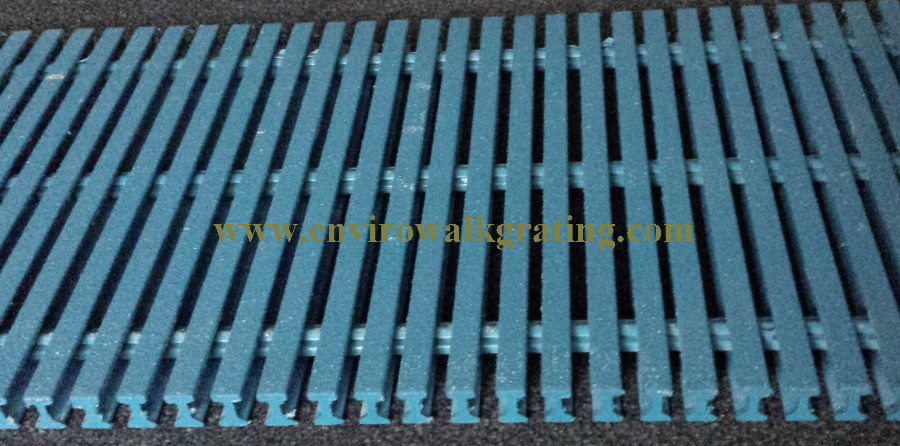

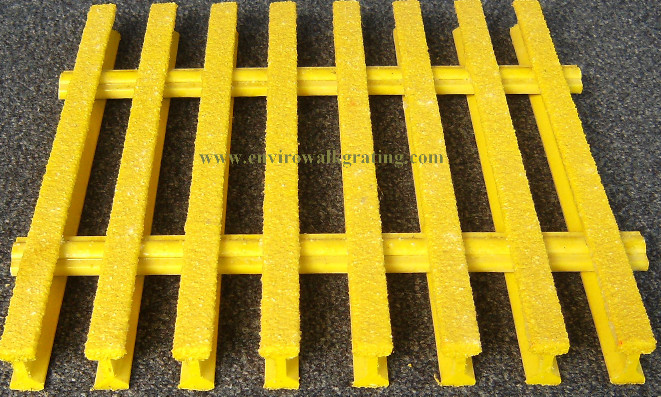

  Although Pultruded Grating has only 1-directional load bearing properties, it
has exceptional strength and is able to provide much greater load spans than the
equivalent height molded grating. Load Capacity details and panels sizes are
still being collated for the web site; in the meanwhile, should you require
further information please contact.
EnviroTread EnviroTread EnviroTread
EnviroTread EnviroTread EnviroTread
|
|
EnviroStructural |
|
Ideal for installations where aggressive chemical
elements would attack steel and/or timber. Product information available
upon request. |
|

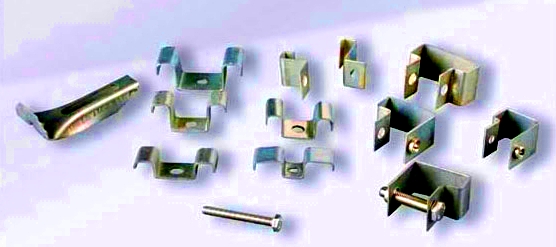

CLIPS & FASTENERS |
|
 |
|
Type C
Type L
Type M

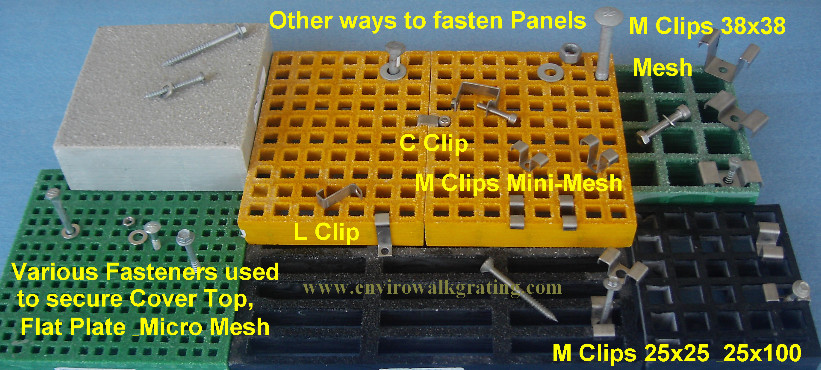

Some Clip/Fastener combinations:
NB:
1] Envirowalk does not
recommend use of C-Clips as they eventually wear away at the load bars. However,
we do carry certain stocks for the standard 38x38 grid mesh. We do not carry
C-Clips for Mini-Mesh.
2] Envirowalk also does not
recommend use of L-Clips as they usually prove to have insufficient strength.
3] Because support
materials vary considerably in material type & dimension fastener bolts & nuts
are generally supplied only with Type 'C' Clips. However, Envirowalk will source
fasteners for specific materials upon request and do carry certain special
fasteners for wood and polished head bolts for Mini-Mesh clips..
Clips are manufactured from
grade 316 Stainless Steel.
|
